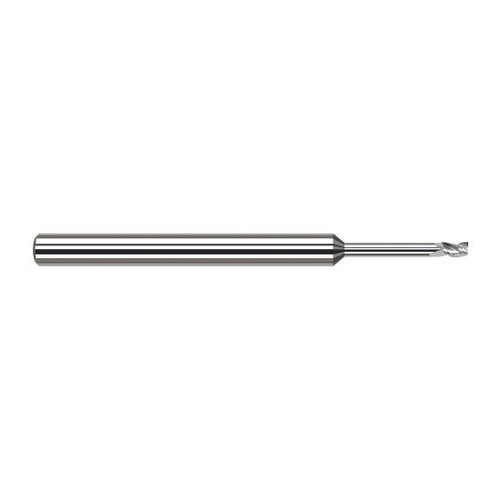

Product Specifications
| Mill Diameter (Inch) | 5/64" |
| Mill Diameter (Decimal Inch) | 0.0780" |
| Number of Flutes | 4 |
| Finish/Coating | Uncoated |
| Length Of Cut (Decimal Inch) | 0.1170" |
| Overall Reach (Inch) | 5/8" |
| Overall Reach (Decimal Inch) | 0.6250" |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.5000" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Center Cutting (Yes/No) | No |
| Neck Diameter (Decimal Inch) | 0.0765" |
| LOC Multiple | 1.5x |
| Reach Multiple | 8x |
| Chip Breaker (Yes/No) | No |
| Single or Double End | Single |
| Weldon | No |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Mill Diameter (Inch):
5/64"
Mill Diameter (Decimal Inch):
0.0780"
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
Uncoated
Length of Cut (Decimal Inch):
0.1170"
Shank Type:
Reduced
Overall Reach (Inch):
5/8"
Overall Reach (Decimal Inch):
0.6250"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Single or Double End:
Single
Center Cutting:
No
Cutting Direction:
Right
Ships:
From Partner Facility
