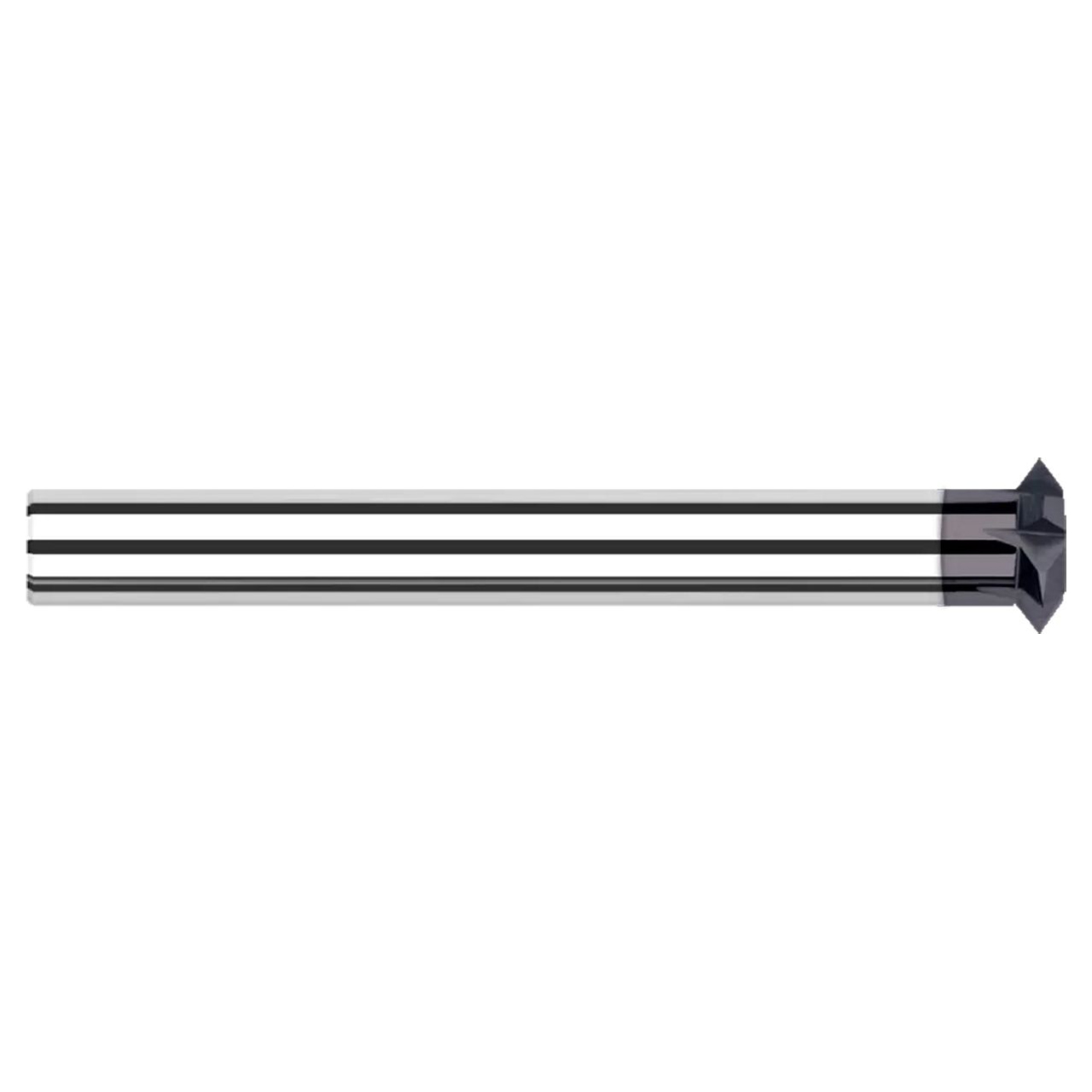

Harvey Tool 877572-C3 | 0.3125" (5/16) Cutter Diameter x 0.1550" Width x 3.1550" OAL 8 Flute C3 Coated Double Angle Shank Cutter

$141.20
Brand:
Harvey Tool
Cutter Diameter (Inch):
5/16"
Cutter Diameter (Decimal Inch):
0.3125"
Included Angle:
90 Degree
Number of Flutes:
8
Cutter Width (Decimal Inch):
0.1550"
Overall Length (Decimal Inch):
3.1550"
Shank Diameter (Decimal Inch):
0.1575"
Shank Diameter (mm):
4.00mm
Finish/Coating:
C3
interval quantity:
1
SKU:
25256977
UPC:
Weight:
0.04 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Features
  • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
  • Reduced straight shank allows any chucking depth
  • Tip of included angle ground to a point
  • 60 Degree angle can also be used for thread milling
  • Solid carbide head brazed onto steel shank
  • CNC ground in the USA

Product Specifications
Manufacturer Part Number877572-C3
Cutter Diameter (Inch)0.3125" (5/16)
Shank Diameter (mm)4mm
Cutter Width (Inch)0.1550"
Overall Length (Inch)3.1550"
Shank Diameter (Inch)0.1575"
Angle per Side45 Degree
Included Angle90 Degree
Number of Flutes8
CoatingC3
ProfilePointed

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
