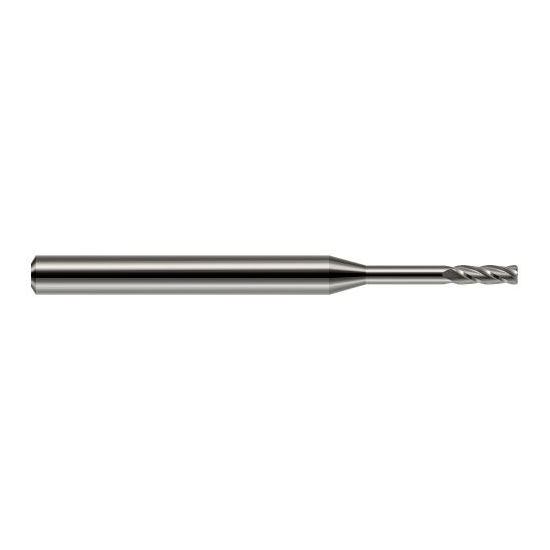

Harvey Tool 877678 | 5/64" Diameter x 1/8" Shank x 15/64" LOC x 2" OAL 0.0100" Radius Uncoated Carbide Corner Radius End Mill

$49.00
Ships:
From Partner Facility
Brand:
Harvey Tool
Mill Diameter (Inch):
5/64"
Mill Diameter (Decimal Inch):
0.0780"
End Type:
Radius
Corner Radius (Decimal Inch):
0.0100"
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
Uncoated
Length of Cut (Inch):
15/64"
Length of Cut (Decimal Inch):
0.2340"
Shank Type:
Reduced
Overall Reach (Inch):
5/8"
Overall Reach (Decimal Inch):
0.6250"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Single or Double End:
Single
Center Cutting:
Yes
Cutting Direction:
Right
Ships:
From Partner Facility
SKU:
25114874
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Product Specifications
Mill Diameter (Inch) 5/64"
Mill Diameter (Decimal Inch) 0.0780"
Corner Radius (Decimal Inch) 0.0100"
Number of Flutes 4
Finish/Coating Uncoated
Length Of Cut (Inch) 15/64"
Length Of Cut (Decimal Inch) 0.2340"
Overall Reach (Inch) 5/8"
Overall Reach (Decimal Inch) 0.6250"
Overall Length (Inch) 2"
Overall Length (Decimal Inch) 2.0000"
Shank Diameter (Inch) 1/8"
Shank Diameter (Decimal Inch) 0.1250"
Single or Double End Single
Center Cutting (Yes/No) Yes
Neck Diameter (Decimal Inch) 0.0765"
LOC Multiple 3x
Reach Multiple 8x
