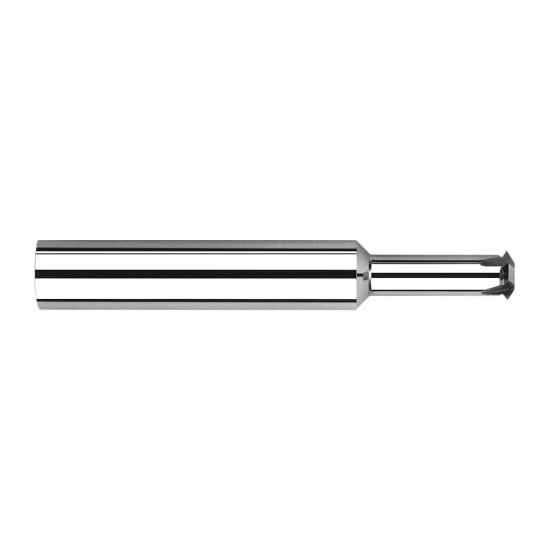

Harvey Tool 882126 | Thread 3.000mm Diameter 4FL 60 Degree Included Angle Uncoated Carbide Single Profile Thread Mill

Harvey Tool 882126 | Thread 3.000mm Diameter 4FL 60 Degree Included Angle Uncoated Carbide Single Profile Thread Mill

SKU: 25120098 Weight: 0.01 LBS Minimum Purchase: 1 unit
UPC:
$126.80
Ships: From Partner Facility
Shipping: Calculated at Checkout

About This Item

Features
  • Single thread form - can mill multiple pitches
  • Cuts internal and external 60 Degree UN threads
  • Mills right hand and left hand threads
  • Tip of included angle ground to a point
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Milling Diameter (mm) 3.000mm
Max Depth of Thread (mm) 9.000mm
Number of Flutes 4
Finish/Coating Uncoated
Included Angle 60 Degree
Shank Diameter (mm) 3.000mm
Overall Length (mm) 38.000mm
Neck Diameter (mm) 1.800mm
Length of Cut (mm) 0.693mm
Angle Per Side 30 Degrees
Reach Multiple (5x)
