Product Specifications
| Mill Diameter (Decimal Inch) | 0.1250" |
| Mill Diameter (Inch) | 1/8" |
| Neck Diameter (Decimal Inch) | 0.0570" |
| Length Of Cut (Decimal Inch) | 0.0340" |
| Neck Length (Decimal Inch) | 0.1250" |
| Neck Length (Inch) | 1/8" |
| Overall Length (Decimal Inch) | 1.5000" |
| Overall Length (Inch) | 1-1/2" |
| Angle Per Side | 45 Degree |
| Included Angle | 90 Degree |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (Inch) | 1/8" |
| Metric | No |
| Coating | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

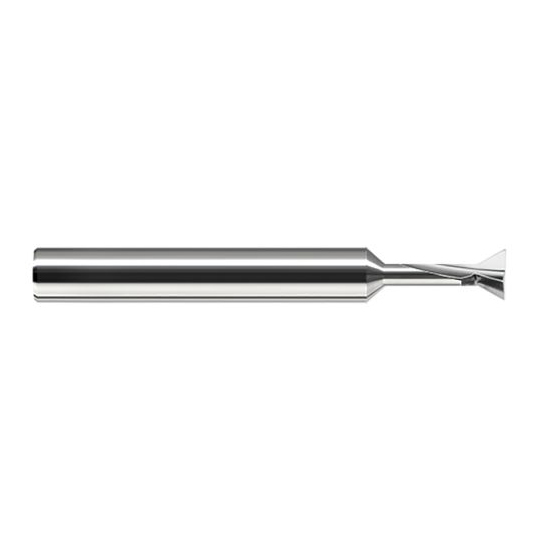

Brand:
Harvey Tool
Included Angle:
90 Degree
Cutting Diameter (Inch):
1/8"
Cutting Diameter (Decimal Inch):
0.1250"
Cutting Width (Decimal Inch):
0.0340"
Material:
Solid Carbide
Finish/Coating:
Uncoated
Ships:
From Partner Facility
IsDiscontinued:
