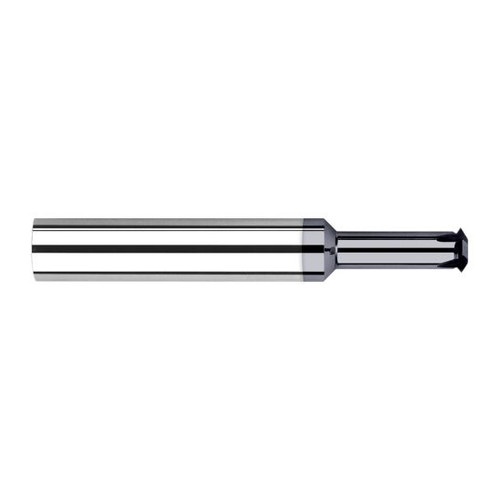

Harvey Tool 890326-C3 | Thread 3.000mm Diameter 4FL 60 Degree Incuded Angle AlTiN Coated Carbide Single Profile Thread Mill

$94.00
Ships:
From Partner Facility
Brand:
Harvey Tool
Cutter Diameter (mm):
3.000mm
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
AlTiN
Shank Diameter (mm):
3.000mm
Overall Length (mm):
38.000mm
Ships:
From Partner Facility
SKU:
25120119
UPC:
Weight:
0.01 LBS
Shipping:
Free Shipping
Features
  • Single thread form - can mill multiple pitches
  • Cuts internal and external 60 Degree UN threads
  • Mills right hand and left hand threads
  • Tip of included angle ground to a point
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Milling Diameter (mm) 3.000mm
Max Depth of Thread (mm) 5.500mm
Number of Flutes 4
Finish/Coating AlTiN
Included Angle 60 Degree
Shank Diameter (mm) 3.000mm
Overall Length (mm) 38.000mm
Neck Diameter (mm) 1.800mm
Length of Cut (mm) 0.693mm
Angle Per Side 30 Degrees
Reach Multiple (3x)
