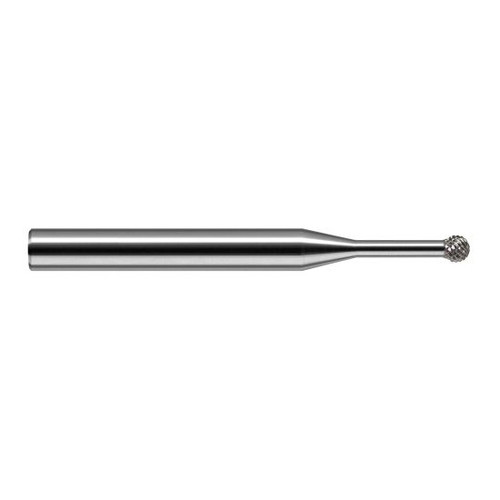

Harvey Tool 890916 | 270 Degree Sperical Ball 1/4" Diameter x 1/4" Shank x 0.2130" LOC x 2-1/2" OAL FL Uncoated Carbide Undercutting End Mill

$80.40
Ships:
From Partner Facility
Brand:
Harvey Tool
Wrap Angle:
270 Degree
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Length of Cut (Decimal Inch):
0.2130"
Neck Length (Decimal Inch):
0.5000"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Finish/Coating:
Uncoated
Material:
Carbide
Ships:
From Partner Facility
IsDiscontinued:
SKU:
25120934
UPC:
Weight:
0.06 LBS
Shipping:
Free Shipping
Product Specifications
Mill Diameter (Decimal Inch) 0.2500"
Mill Diameter (Inch) 1/4"
Neck Diameter (Decimal Inch) 0.1360"
Length Of Cut (Decimal Inch) 0.2130"
Neck Length (Decimal Inch) 0.5000"
Neck Length (Inch) 1/2"
Overall Reach (Decimal Inch) 0.7130"
Overall Length (Decimal Inch) 2.5000"
Overall Length (Inch) 2-1/2"
Radius (Decimal Inch) 0.1250"
Radius (Inch) 1/8"
Wrap Angle 270 Degree
Right Hand Teeth 16
Left Hand Teeth 13
Shank Diameter (Decimal Inch) 0.2500"
Shank Diameter (Inch) 1/4"
Coating Uncoated
