Harvey Tool 895739-C3 | 0.0390" (1 mm) Diameter x 0.1250" (1/8) Shank x 0.1560" (5/32) LOC x 2.5000" (2-1/2) OAL x 3 Flutes AlTiN Coated Carbide Miniature Tapered Ball End Mill

$44.40
Brand:
Harvey Tool
Shank Diameter (Inch):
1/8"
Cutter Diameter (mm):
1.00mm
Length of Cut (Inch):
5/32"
Length of Cut (Decimal Inch):
0.1560"
Number of Flutes:
3
Finish/Coating:
C3
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
interval quantity:
1
SKU:
25232735
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

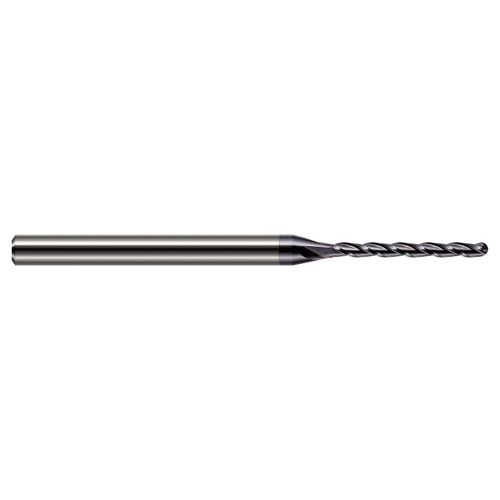

Miniature End Mills - Ball - Long Flute are CNC ground from solid carbide in the USA, are center cutting, and are designed with a long flute and long shank to mill deep pockets and cavities.

  • Long flute and long shank design for deep cavities
  • CNC ground in the USA
  • Mills deep pockets
  • Center cutting
  • Solid carbide

Product Specifications
Tool Number895739-C3
Cutter Diameter (Inch)0.0390" (1 mm)
Length of Cut (Inch)0.1560" (5/32)
Overall Length (Inch)2.5000" (2-1/2)
Flutes3
LOC Multiple4x
Shank Diameter (Inch)0.1250" (1/8)
CoatingC3
