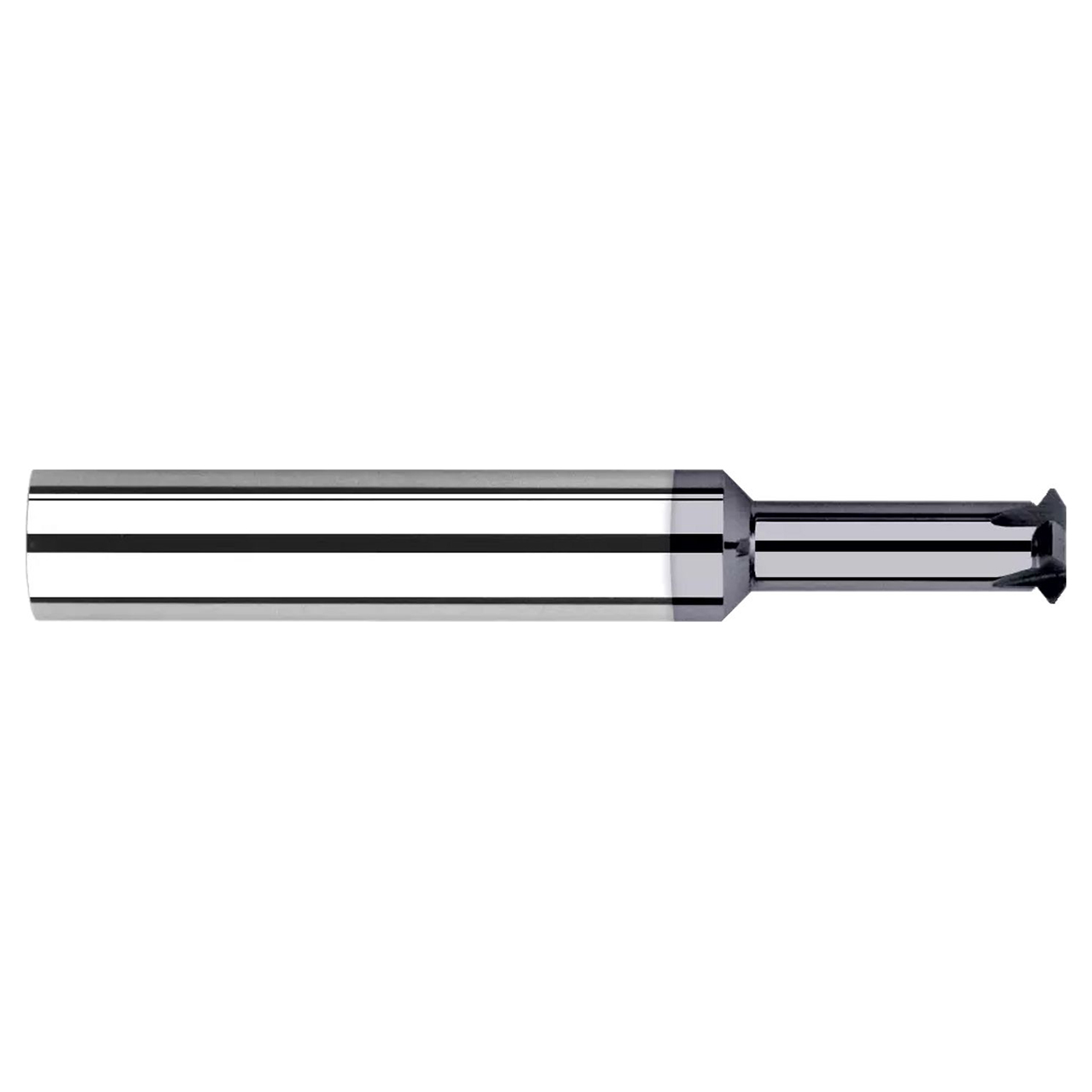

Harvey Tool 898960-C6 | 0.3000" Diameter x 0.0450" LOC x 0.3750" (3/8) Shank x 5 Flute AlTiN Nano Coated Carbide Multi-Form Thread Milling Cutter

$178.40
Brand:
Harvey Tool
Cutter Diameter (Decimal Inch):
0.3000"
Neck Diameter (Decimal Inch):
0.2270"
Length of Cut (Decimal Inch):
0.0450"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Included Angle:
60 Degree
Number of Flutes:
5
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Finish/Coating:
C6
interval quantity:
1
SKU:
25211654
UPC:
Weight:
0.11 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

This single thread form tool is designed to mill common pitch sizes. The top of its included angle is ground to a flat for increased wear resistance, ensuring that your tool life is maximized.

  • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
  • Tip of included angle ground to a flat for increased wear resistance
  • Large rigid core diameter and eccentric relief for improved strength
  • Single thread form designed to mill common pitch sizes
  • Select carbide grade for improved edge retention
  • Mills left hand and right hand threads
  • CNC ground in the USA

Product Specifications
Tool Number898960-C6
Cutter Diameter (Inch)0.3000"
Neck Diameter (Inch)0.2270"
Length of Cut (Inch)0.0450"
Overall Length (Inch)3.0000" (3)
Max Depth of Thread (Inch)1.7500" (1-3/4)
Angle per Side30
Included Angle60
Flutes5
Size3/8
Shank Diameter (Inch)0.3750" (3/8)
CoatingC6
