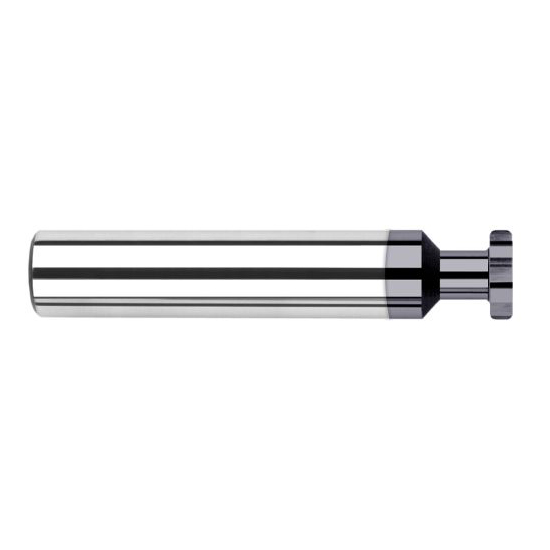

Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000" |
| Mill Diameter (Inch) | 1/2" |
| Neck Diameter (Decimal Inch) | 0.1560" |
| Neck Diameter (Inch) | 5/32" |
| Cutter Width (Decimal Inch) | 0.0930" |
| Cutter Width (Inch) | 3/32" |
| Neck Length (Decimal Inch) | 0.2500" |
| Neck Length (Inch) | 1/4" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (Inch) | 3" |
| Radial Depth Of Cut (Decimal Inch) | 0.1620" |
| Corner Radius (Decimal Inch) | 0.0100" |
| Number of Flutes | 8 |
| Reach Multiple | (0.5x) |
| Type | II |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Coating | AlTiN |
| Top Corner Radius | 0.01 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Milling Diameter (Inch):
1/2"
Milling Diameter (Decimal Inch):
0.5000"
Cutting Width (Inch):
3/32"
Cutting Width (Decimal Inch):
0.0930"
Corner Radius:
0.0100"
Neck Length (Inch):
1/4"
Neck Length (Decimal Inch):
0.2500"
Material:
Solid Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Tooth Configuration:
Straight Tooth
Ships:
From Partner Facility
