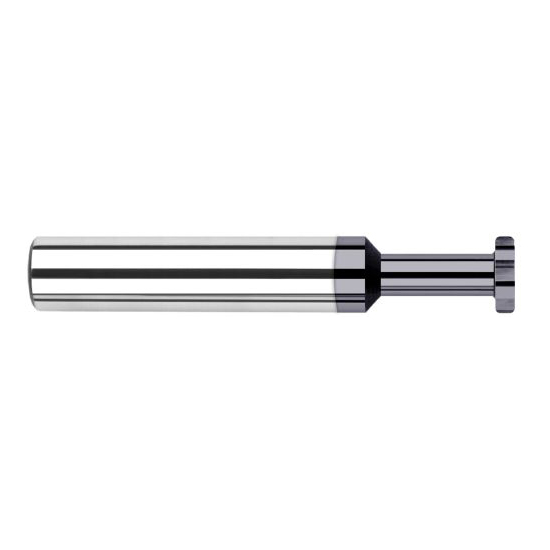

Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250" |
| Mill Diameter (Inch) | 5/8" |
| Neck Diameter (Decimal Inch) | 0.3120" |
| Neck Diameter (Inch) | 5/16" |
| Cutter Width (Decimal Inch) | 0.1870" |
| Cutter Width (Inch) | 3/16" |
| Neck Length (Decimal Inch) | 1.0000" |
| Neck Length (Inch) | 1" |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (Inch) | 3-1/2" |
| Radial Depth Of Cut (Decimal Inch) | 0.1460" |
| Corner Radius (Decimal Inch) | 0.0100" |
| Number of Flutes | 8 |
| Reach Multiple | (1.5x) |
| Type | I |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Coating | AlTiN |
| Top Corner Radius | 0.01 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Milling Diameter (Inch):
5/8"
Milling Diameter (Decimal Inch):
0.6250"
Cutting Width (Inch):
3/16"
Cutting Width (Decimal Inch):
0.1870"
Corner Radius:
0.0100"
Neck Length (Inch):
1"
Neck Length (Decimal Inch):
1.0000"
Material:
Solid Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Tooth Configuration:
Straight
Ships:
From Partner Facility
