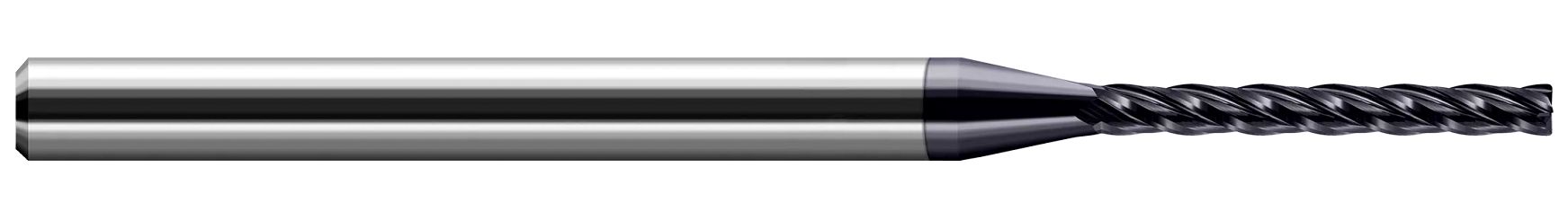

The corner radius profile featured in this collection of Harvey Tool Miniature End Mills - Corner Radius - Stub & Standard adds strength to the tool.
- Corner radius for improved strength
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
Cutter Diameter (Inch) | 0.1090" (7/64) |
Length of Cut (Inch) | 0.5700" |
Overall Length (Inch) | 2.5000" (2-1/2) |
Number of Flutes | 4 |
Corner Radius | 0.0050" |
LOC Multiple | 5x |
Shank Diameter (Inch) | 0.1250" (1/8) |
Coating/Finish | Uncoated |
Technical Files
Safety Data Sheet North America (SDS NA)

Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
7/64"
Cutter Diameter (Decimal Inch):
0.1090"
Length of Cut (Decimal Inch):
0.5700"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Corner Radius (Decimal Inch):
0.0050"
Number of Flutes:
4
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
Uncoated
