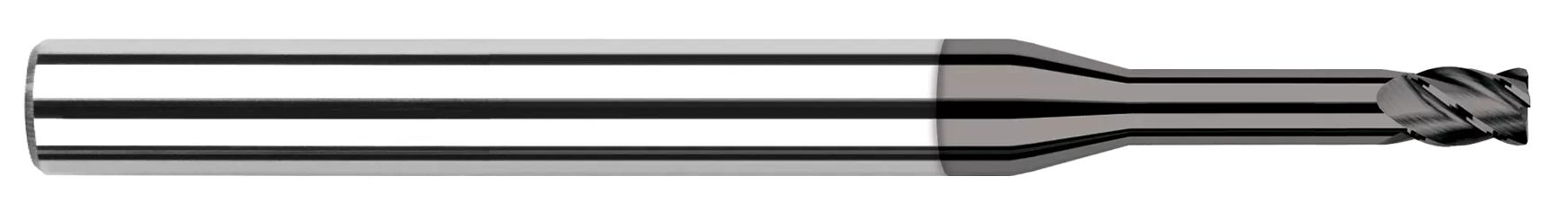

Harvey Tool 916308 | 1/8" Diameter x 1/8" Shank x 3/16" LOC x 2-1/2" OAL 0.0100" Radius 4 Flute CVD Diamond Coated Carbide Corner Radius End Mill

$163.70
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/8"
Cutter Diameter (Decimal Inch):
0.1250"
Neck Diameter (Decimal Inch):
0.1200"
Length of Cut (Inch):
3/16"
Length of Cut (Decimal Inch):
0.1870"
Overall Reach (Inch):
5/8"
Overall Reach (Decimal Inch):
0.6250"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Corner Radius (Decimal Inch):
0.0100"
Number of Flutes:
4
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
C5
interval quantity:
1
SKU:
25186654
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
916308

This offering of Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Corner Radius - Long Reach, Stub Flute features a reduced neck geometry for clearance and maximum rigidity. Use this unique tool in graphite and composites, green carbide, and green ceramics applications.

  • True crystalline CVD diamond on solid carbide substrate
  • Ideal for machining graphite and composites, green carbide, and green ceramics
  • Maximum abrasion resistance increases tool life
  • Reduced neck for clearance and maximum rigidity
  • Corner radius for improved strength
  • 4 flutes
  • h6 shank tolerance for high precision tool holders
  • Center cutting
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.1250" (1/8)
Neck Diameter (Inch)0.1200"
Length of Cut (Inch)0.1870" (3/16)
Overall Reach (Inch)0.6250" (5/8)
Overall Length (Inch)2.5000" (2-1/2)
Number of Flutes4
Corner Radius0.0100"
LOC Multiple1.5x
Reach Multiple5x
Shank Diameter (Inch)0.1250" (1/8)
Coating/FinishC5

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Cutter Diameter (Inch):
1/8"
Cutter Diameter (Decimal Inch):
0.1250"
Neck Diameter (Decimal Inch):
0.1200"
Length of Cut (Inch):
3/16"
Length of Cut (Decimal Inch):
0.1870"
Overall Reach (Inch):
5/8"
Overall Reach (Decimal Inch):
0.6250"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Corner Radius (Decimal Inch):
0.0100"
Number of Flutes:
4
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
C5
interval quantity:
1
