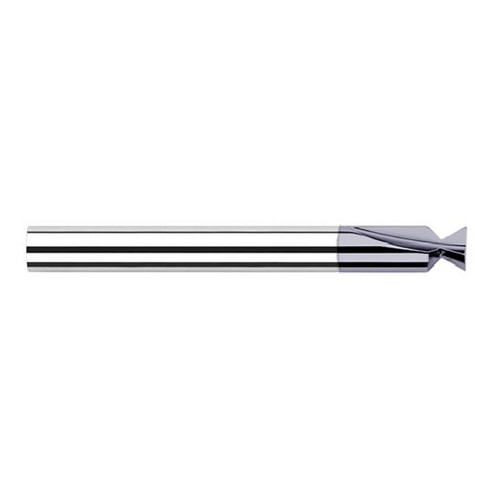

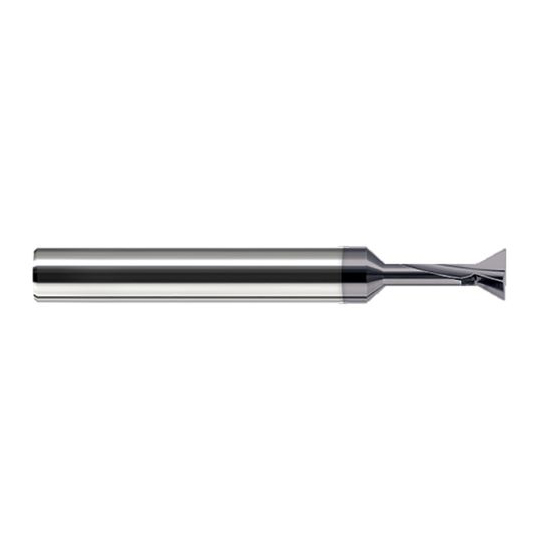

Harvey Tool 931032-C3 | 1/2" Diameter 90 Degree Included Angle AlTiN Coated Solid Carbide Dovetail Cutter

$215.60
Ships:
From Partner Facility
Brand:
Harvey Tool
Included Angle:
90 Degree
Cutting Diameter (Inch):
1/2"
Cutting Diameter (Decimal Inch):
0.5000"
Cutting Width (Inch):
5/32"
Cutting Width (Decimal Inch):
0.1560"
Tip Radius:
0.0100"
Material:
Solid Carbide
Finish/Coating:
AlTiN
Ships:
From Partner Facility
interval quantity:
1
SKU:
25107486
UPC:
Weight:
0.27 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Harvey Tool 931032-C3 | 1/2" Diameter 90 Degree Included Angle AlTiN Coated Solid Carbide Dovetail Cutter
Product Specifications
Mill Diameter (Decimal Inch) 0.5000"
Mill Diameter (Inch) 1/2"
Neck Diameter (Decimal Inch) 0.2160"
Length Of Cut (Decimal Inch) 0.1560"
Length Of Cut (Inch) 5/32"
Neck Length (Decimal Inch) 0.2500"
Neck Length (Inch) 1/4"
Overall Length (Decimal Inch) 3.0000"
Overall Length (Inch) 3"
Corner Radius (Decimal Inch) 0.0100"
Angle Per Side 45 Degree
Included Angle 90 Degree
Number of Flutes 3
Shank Diameter (Decimal Inch) 0.5000"
Shank Diameter (Inch) 1/2"
Metric No
Coating AlTiN
