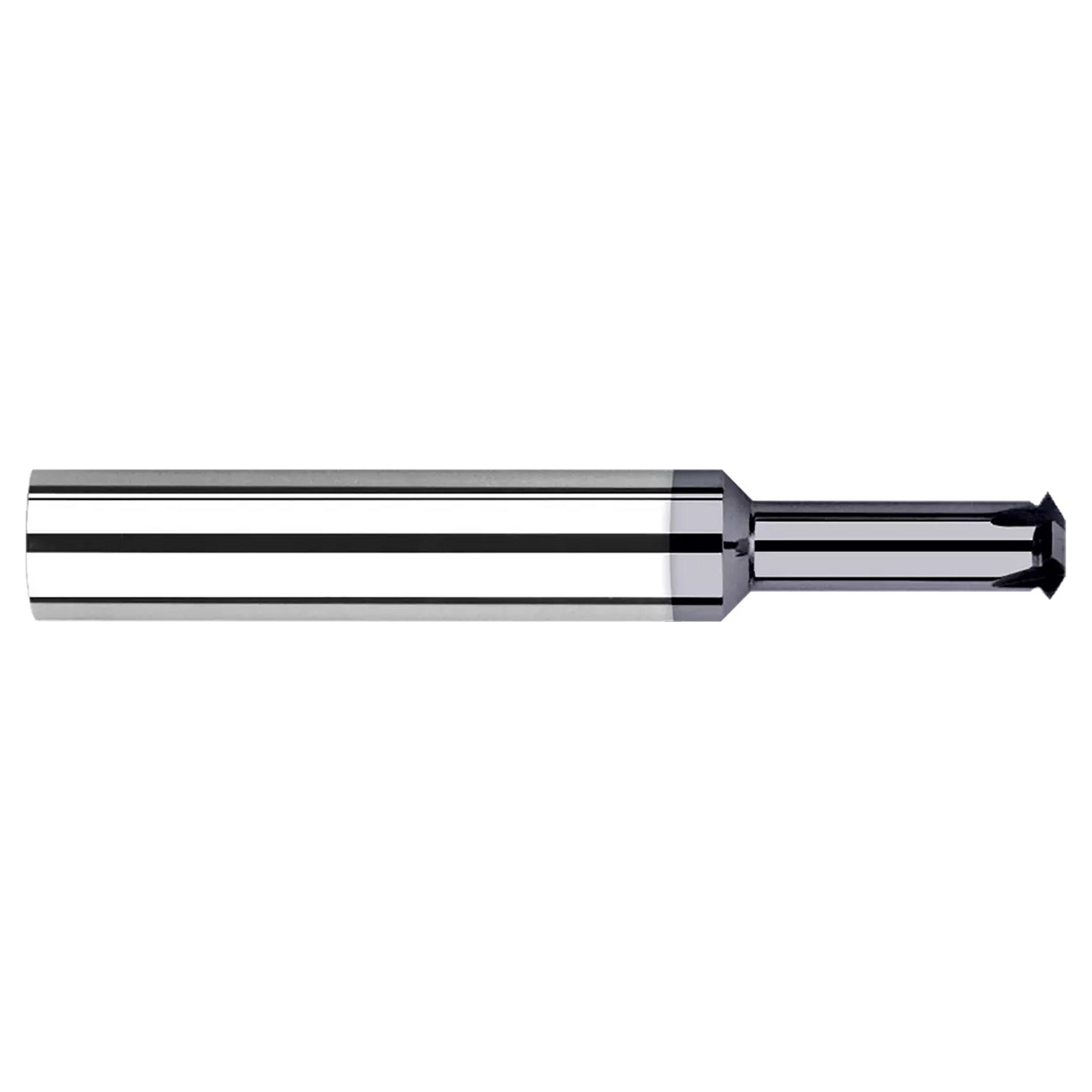

Harvey Tool 932915-C3 | 0.0930" (3/32) Diameter x 0.0250" LOC x 0.1875" (3/16) Shank x 4 Flute AlTiN Coated Carbide Multi-Form Thread Milling Cutter

$95.10
Brand:
Harvey Tool
Cutter Diameter (Inch):
3/32"
Cutter Diameter (Decimal Inch):
0.0930"
Neck Diameter (Decimal Inch):
0.0500"
Length of Cut (Decimal Inch):
0.0250"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Included Angle:
60 Degree
Number of Flutes:
4
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Finish/Coating:
C3
interval quantity:
1
SKU:
25211692
UPC:
Weight:
0.03 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Harvey Tool Thread Milling Cutters - Single Form - UN Threads can mill multiple pitches, and cut internal and external

  • Tip of included angle ground to a point
  • Mills right hand and left hand threads
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number932915-C3
Cutter Diameter (Inch)0.0930" (3/32)
Neck Diameter (Inch)0.0500"
Length of Cut (Inch)0.0250"
Overall Length (Inch)2.0000" (2)
Max Depth of Thread (Inch)0.1250" (1/8)
Angle per Side30
Included Angle60
Flutes4
Size5
Shank Diameter (Inch)0.1875" (3/16)
CoatingC3
