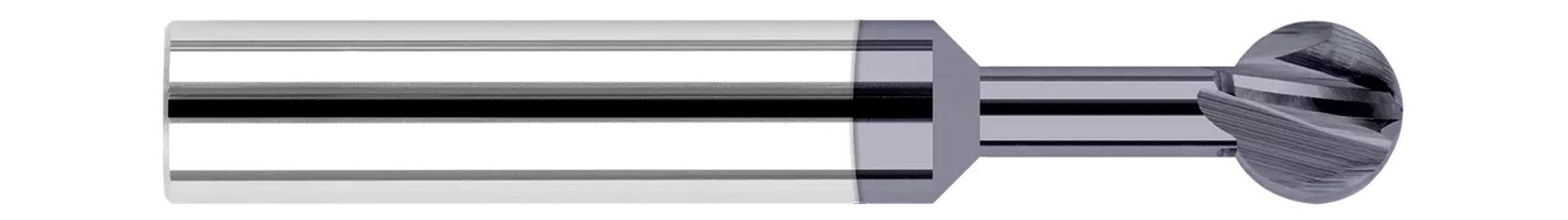

Harvey Tool 933012 | 300 Degree Spherical Ball 3/16" Diameter x 3/16" Shank x 0.1740" LOC x 2" OAL 4 Flute Uncoated Carbide Undercutting End Mill

$65.70
Brand:
Harvey Tool
Cutter Diameter (Inch):
3/16"
Cutter Diameter (Decimal Inch):
0.1875"
Neck Diameter (Decimal Inch):
0.0820"
Number of Flutes:
4
Length of Cut (Decimal Inch):
0.1740"
Neck Length (Inch):
3/16"
Neck Length (Decimal Inch):
0.1870"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Finish/Coating:
Uncoated
interval quantity:
1
SKU:
25186898
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
933012

Related Products

The 270 Degree spherical ball on this solid carbide Undercutting End Mill is ideal for deburring complex shapes, and multi-axis machining. Deburr right in your CNC machine with these high-precision burs held to end mill tolerances, and stop scrapping expensive parts due to handheld operator errors.

  • 270 Degree spherical ball is ideal for deburring complex shapes and multi-axis machining
  • Deburr in your CNC machine with these high-precision burs held to end mill tolerances
  • Stop scrapping expensive parts due to handheld operator errors
  • High flute count allows for increased feeds which reduces cycle times
  • Achieve better finish than with milling-type cutters
  • Double cut style flute pattern
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.1875" (3/16)
Neck Diameter (Inch)0.0820"
Length of Cut (Inch)0.1740"
Neck Length (Inch)0.1870" (3/16)
Overall Reach (Inch)0.3610"
Overall Length (Inch)2.0000" (2)
Radius0.0938"
Number of Flutes4
Wrap Angle300
Shank Diameter (Inch)0.1875" (3/16)
Coating/FinishUncoated
