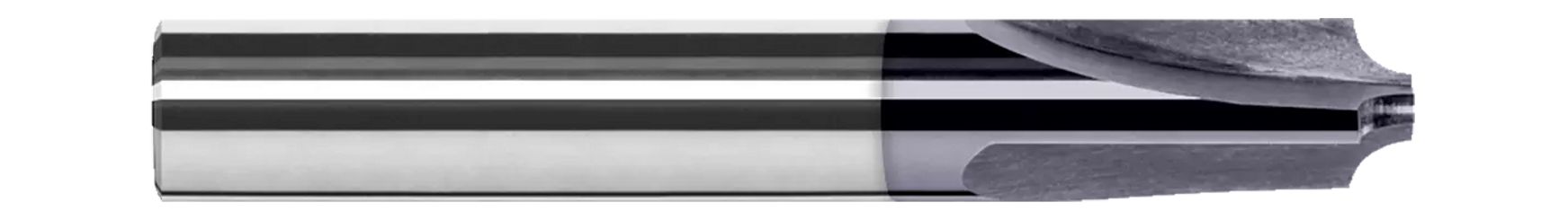

Harvey Tool 933420 | 0.0580" Diameter x 1/8" Shank x 1-1/2" OAL 3 Flute Uncoated Carbide Single End Corner Rounding End Mill

$39.20
Brand:
Harvey Tool
Pilot Diameter (Decimal Inch):
0.0580"
Radius (Decimal Inch):
0.0200"
Number of Flutes:
3
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
SKU:
25186970
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
933420

This Corner Rounding End Mills - 3 Flute - Flared Harvey Tool product selection features tooling with 5 Degree flares tangent at the pilot.

  • Single end
  • Cutting on radius and end only (not center cutting)
  • 5 Degree flares tangent at pilot and shoulder to avoid steps
  • Axial depth of cut = radius plus .005"
  • 3 flutes
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Pilot Diameter (Inch)0.0580"
Overall Length (Inch)1.5000" (1-1/2)
Radius0.0200"
Number of Flutes3
Shank Diameter (Inch)0.1250" (1/8)
Coating/FinishUncoated
Pilot Flare5
Shoulder Flare5
