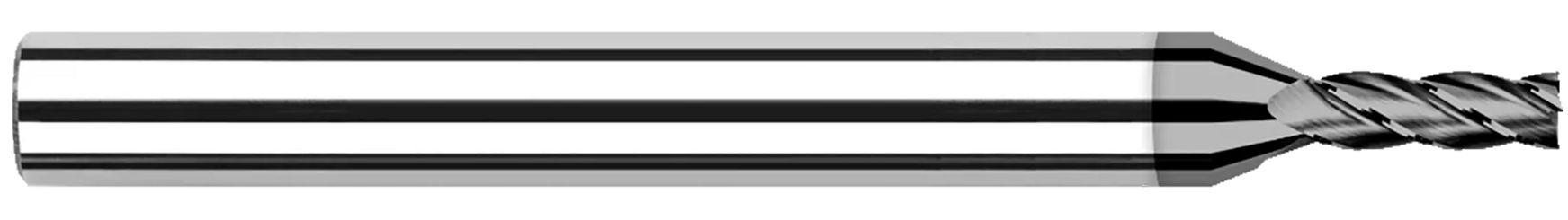

Harvey Tool 936724 | 0.3750" Diameter x 0.3750" Shank x 2" LOC x 4" OAL 4 Flute CVD Diamond Coating Carbide Square End Mill

$237.10
Brand:
Harvey Tool
Shank Diameter (Inch):
3/8"
Length of Cut (Inch):
2"
Length of Cut (Decimal Inch):
2.0000"
Number of Flutes:
4
Finish/Coating:
C5
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
interval quantity:
1
SKU:
25175237
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
936724

Fully stocked and ready to ship the day of purchase in cutter diameters as miniature as .015", this Harvey Tool offering of Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Square features 4 flutes and true crystalline CVD diamond on solid carbide substrate.

  • True crystalline CVD diamond on solid carbide substrate
  • Ideal for machining graphite and composites, green carbide, and green ceramics
  • Maximum abrasion resistance increases tool life
  • 4 flutes
  • h6 shank tolerance for high precision tool holders
  • Center cutting
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.3750" (3/8)
Length of Cut (Inch)2.0000" (2)
Overall Length (Inch)4.0000" (4)
Number of Flutes4
LOC Multiple5x
Shank Diameter (Inch)0.3750" (3/8)
Coating/FinishC5
