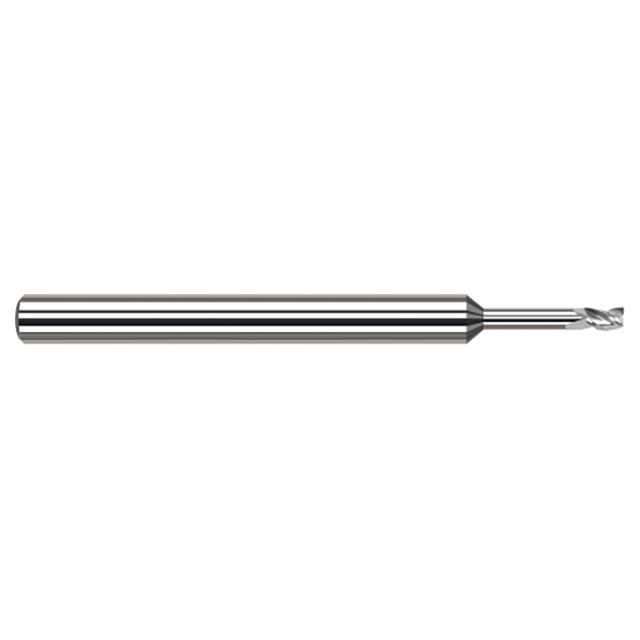

Harvey Tool 937110 | 5/32" Diameter x 3/16" Shank x 15/64" LOC x 3" OAL 3 Flute Uncoated Coated Square End Mill

$45.30
Ships:
From Partner Facility
Brand:
Harvey Tool
Mill Diameter (Inch):
5/32"
Mill Diameter (Decimal Inch):
0.1562"
Number of Flutes:
3
Material:
Carbide
Finish/Coating:
Uncoated
Length of Cut (Inch):
15/64"
Length of Cut (Decimal Inch):
0.2340"
Overall Reach (Inch):
15/16"
Overall Reach (Decimal Inch):
0.9370"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Single or Double End:
Single
Center Cutting:
No
Ships:
From Partner Facility
SKU:
25118061
UPC:
Weight:
0.10 LBS
Shipping:
Calculated at Checkout
Product Specifications
Cutter Diameter (Inch) 5/32"
Cutter Diameter (Decimal Inch) 0.1562"
Length of Cut (Inch) 15/64"
Length of Cut (Decimal Inch) 0.2340"
Overall Reach (Inch) 15/16"
Overall Reach (Decimal Inch) 0.9370"
Overall Length (Inch) 3"
Overall Length (Decimal Inch) 3.0000"
Number of Flutes 3
LOC Multiple 1.5x
Reach Multiple 6x
Shank Diameter (Inch) 3/16"
Shank Diameter (Decimal Inch) 0.1875"
Metric (Yes/No) No
Center Cutting (Yes/No) No
Chip Breaker (Yes/No) No
Finish/Coating Uncoated
Double Ended (Yes/No) No
Weldon Flat (Yes/No) No
Coolant Through (Yes/No) No
