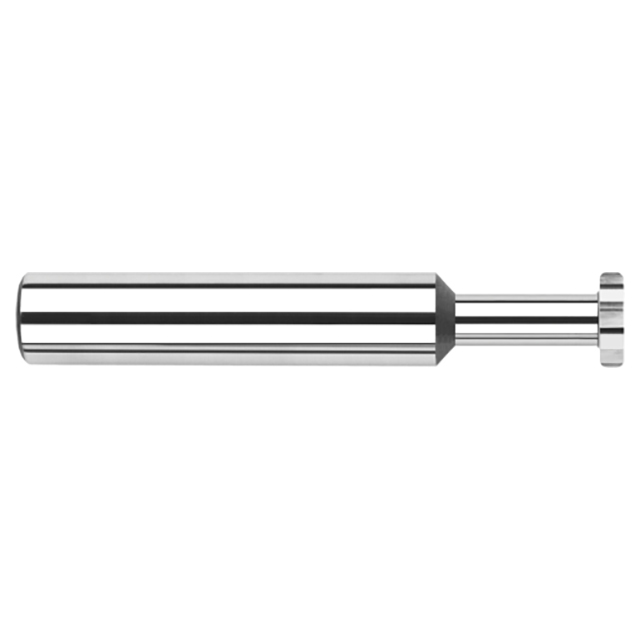

Product Specifications
| Cutter Diameter (Inch) | 3/16" |
| Cutter Diameter (Decimal Inch) | 0.1875" |
| Neck Diameter (Inch) | 3/32" |
| Neck Diameter (Decimal Inch) | 0.0930" |
| Cutter Width (Inch) | 1/16" |
| Cutter Width (Decimal Inch) | 0.0620" |
| Neck Length (Inch) | 9/32" |
| Neck Length (Decimal Inch) | 0.2810" |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.0000" |
| Radial Depth of Cut (Decimal Inch) | 0.0370" |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (Decimal Inch) | 0.0150" |
| Number of Flutes | 6 |
| Reach Multiple | 1.5x |
| Type | I |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Metric (Yes/No) | No |
| Center Cutting (Yes/No) | No |
| Chip Breaker (Yes/No) | No |
| Finish/Coating | Uncoated |
| Double Ended (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutting Diameter (Inch):
3/16"
Cutting Diameter (Decimal Inch):
0.1875"
Cutting Width (Inch):
1/16"
Cutting Width (Decimal Inch):
0.0620"
Neck Length (Inch):
9/32"
Neck Length (Decimal Inch):
0.2810"
Material:
Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Ships:
From Partner Facility
