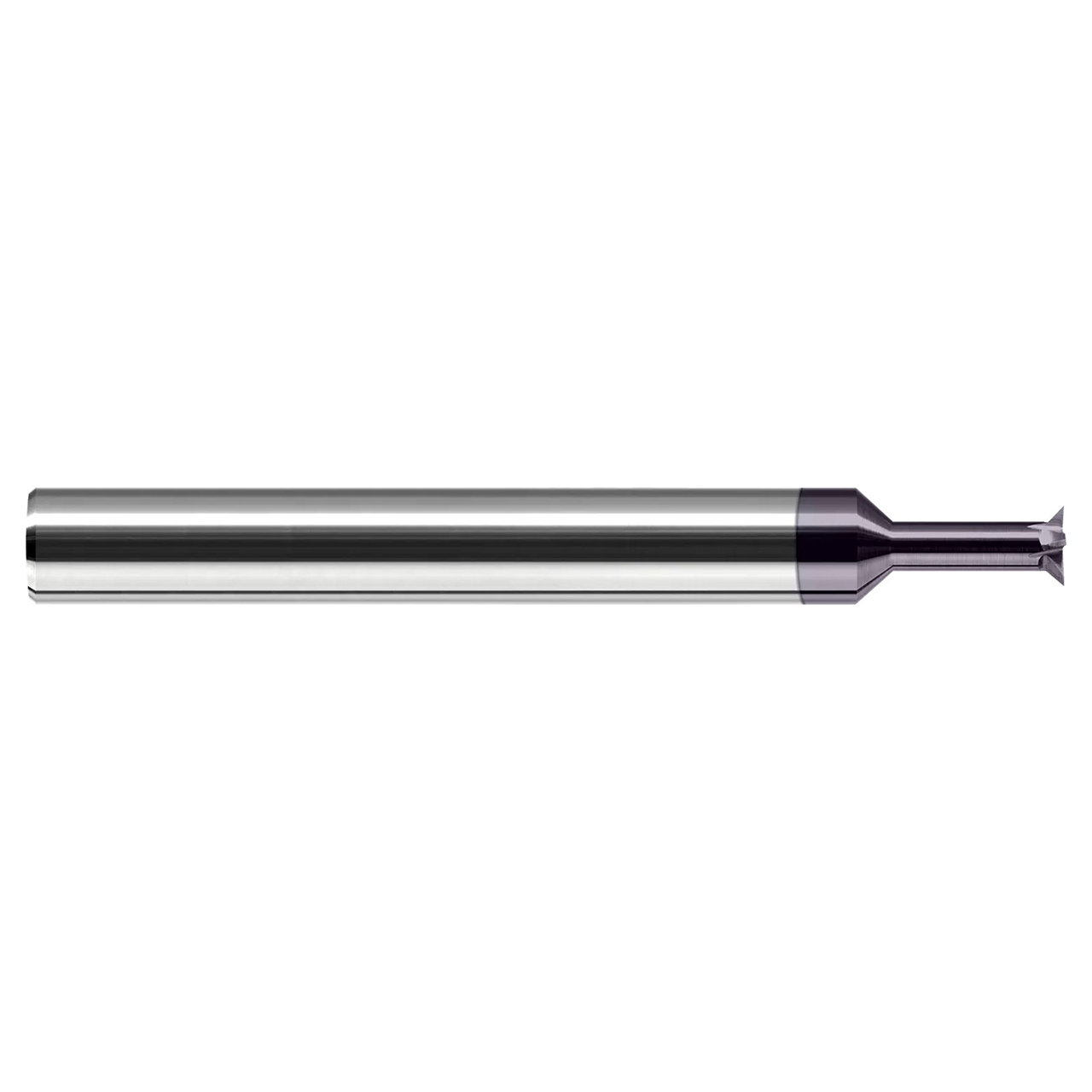

Harvey Tool 938270 | 0.3750" (3/8) Shank x 2.5000" (2-1/2) OAL x 90 Degree 6 Flutes Uncoated Carbide Back Chamfer Cutter Chamfer Cutter

$105.30
SKU:
25211702
UPC:
Weight:
0.50 LBS
Shipping:
Free Shipping

Solid carbide Back Chamfer Cutters offers a low profile design with multiple flutes and greater radial projection. This tool is optimized for generating chamfered features on the backside of small holes, resulting in improved part finishes.

  • Low profile design and greater radial projection ideal for generating chamfered features on the backside of small holes or slots
  • Decrease costs by avoiding time-consuming changes to part set-ups
  • Left hand shear flute / right hand cut evacuates chip away from part
  • Slightly undersized to fit in common hole sizes
  • Multiple flutes for improved finish
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number938270
Head Diameter (Inch)0.3750" (3/8)
Neck Diameter (Inch)0.2370"
Length of Cut (Inch)0.0660"
Neck Length (Inch)1.1250" (1-1/8)
Overall Length (Inch)2.5000" (2-1/2)
Angle per Side45
Included Angle90
Flutes6
Reach Multiple5x
Shank Diameter (Inch)0.3750" (3/8)
CoatingUncoated
