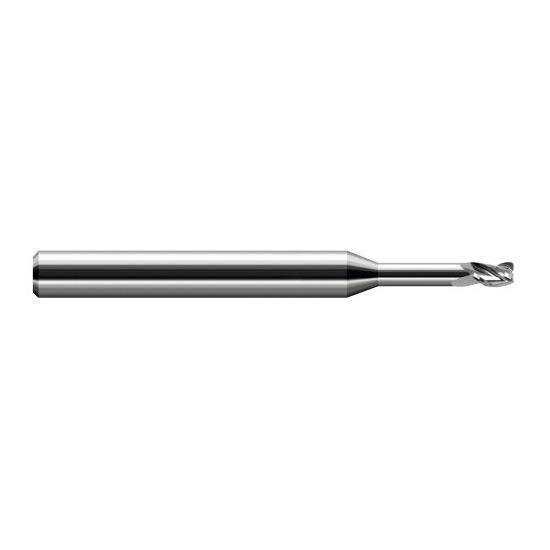

Harvey Tool 953616 | 1/4" Diameter x 1/4" Shank x 3/8" LOC x 4" OAL 0.0200" Radius Uncoated Carbide Corner Radius End Mill

$54.20
Ships:
From Partner Facility
Brand:
Harvey Tool
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
End Type:
Radius
Corner Radius (Decimal Inch):
0.0200"
Number of Flutes:
3
Material:
Carbide
Finish/Coating:
Uncoated
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3750"
Shank Type:
Reduced
Overall Reach (Inch):
1-1/4"
Overall Reach (Decimal Inch):
1.2500"
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Single or Double End:
Single
Center Cutting:
Yes
Cutting Direction:
Right
Ships:
From Partner Facility
SKU:
25115357
UPC:
Weight:
0.10 LBS
Shipping:
Calculated at Checkout
Product Specifications
Mill Diameter (Inch) 1/4"
Mill Diameter (Decimal Inch) 0.2500"
Corner Radius (Decimal Inch) 0.0200"
Number of Flutes 3
Finish/Coating Uncoated
Length Of Cut (Inch) 3/8"
Length Of Cut (Decimal Inch) 0.3750"
Overall Reach (Inch) 1-1/4"
Overall Reach (Decimal Inch) 1.2500"
Overall Length (Inch) 4"
Overall Length (Decimal Inch) 4.0000"
Shank Diameter (Inch) 1/4"
Shank Diameter (Decimal Inch) 0.2500"
Single or Double End Single
Center Cutting (Yes/No) Yes
Neck Diameter (Decimal Inch) 0.2460"
LOC Multiple 1.5x
Reach Multiple 5x
