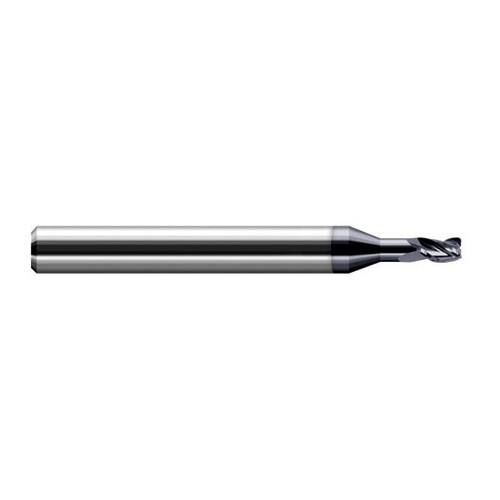

Harvey Tool 953793-C3 | 3/32" Diameter x 1/8" Shank x 0.139" LOC x 2-1/2" OAL x 0.010" Radius 3 Flute AlTiN Coated Carbide Corner Radius End Mill

About This Item

Product Specifications

Mill Diameter (Inch)	3/32"
Mill Diameter (Decimal Inch)	0.0930"
Corner Radius (Decimal Inch)	0.0100"
Number of Flutes	3
Finish/Coating	AlTiN
Length Of Cut (Decimal Inch)	0.1390"
Overall Reach (Decimal Inch)	0.9500"
Overall Length (Inch)	2-1/2"
Overall Length (Decimal Inch)	2.5000"
Shank Diameter (Inch)	1/8"
Shank Diameter (Decimal Inch)	0.1250"
Single or Double End	Single
Center Cutting (Yes/No)	Yes
Neck Diameter (Decimal Inch)	0.0915"
LOC Multiple	1.5x
Reach Multiple	10x
