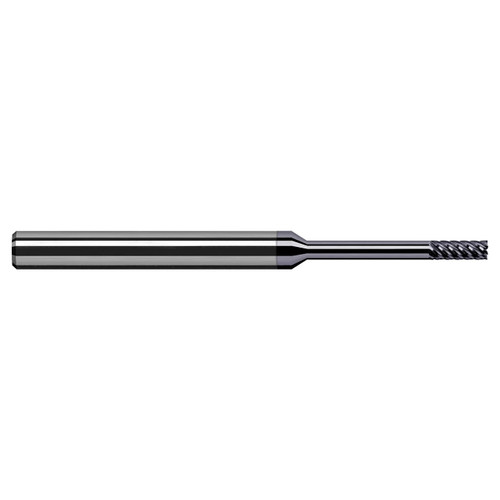

Finish deep within your part with a Variable Helix End Mill for High Temp Alloys - Finishers - Square - Long Reach, which features a reduced neck diameter to avoid heeling and a variable helix design to reduce chatter and harmonics to aid in overall part finish quality.
- Long reach design for deep cavities and increased rigidity
- Large core and eccentric relief for improved tool life
- h6 shank tolerance for high precision tool holders
- End cutting (not center cutting)
- CNC ground in the USA
- Solid carbide
Product Specifications
| Tool Number | 962209-C6 |
| Cutter Diameter (Inch) | 0.1406" (9/64) |
| Neck Diameter (Inch) | 0.1366" |
| Length of Cut (Inch) | 0.4250" |
| Overall Reach (Inch) | 1.1250" (1-1/8) |
| Overall Length (Inch) | 3.0000" (3) |
| Flutes | 7 |
| LOC Multiple | 3x |
| Reach Multiple | 8x |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating | C6 |
