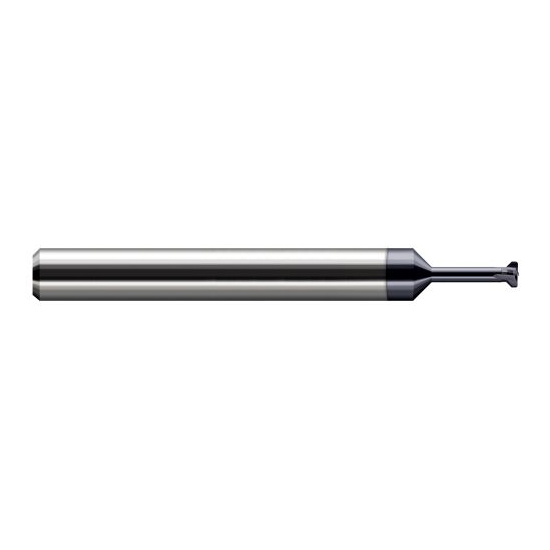

Features
- Tool designed to relieve stress concentrations at corners of undercut and bottom of last thread to prevent fracture and failure
- Chamfer eliminates burrs and partial threads at last thread
- Flattens bottom of hole to achieve maximum thread depth
- 4 flutes
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1420" |
| Neck Diameter (Decimal Inch) | 0.0780" |
| Neck Diameter (Inch) | 5/64" |
| Length of Cut (Decimal Inch) | 0.0500" |
| Neck Length (Decimal Inch) | 0.3590" |
| Neck Length (Inch) | 23/64" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| End Length (Decimal Inch) | 0.0200" |
| Radial Depth of Cut (Decimal Inch) | 0.0300" |
| Radius (Decimal Inch) | 0.0100" |
| Angle Per Side | 45 Degrees |
| Included Angle | 90 Degrees |
| Number of Flutes | 4 |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Coating | AlTiN |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Decimal Inch):
0.1420"
Length of Cut (Decimal Inch):
0.0500"
Width:
0.0200"
Neck Length (Decimal Inch):
0.3590"
Shank Diameter (Inch):
1/4"
Overall Length (Inch):
2-1/2"
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
AlTiN
Ships:
From Partner Facility
