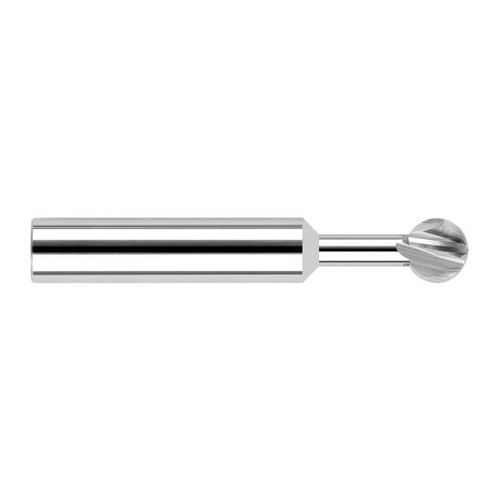

Product Specifications
| Mill Diameter (Decimal Inch) | 0.3750" |
| Mill Diameter (Inch) | 3/8" |
| Neck Diameter (Decimal Inch) | 0.1720" |
| Neck Diameter (Inch) | 11/64" |
| Length Of Cut (Decimal Inch) | 0.3490" |
| Neck Length (Decimal Inch) | 1.0000" |
| Neck Length (Inch) | 1" |
| Overall Reach (Decimal Inch) | 1.3500" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (Inch) | 3" |
| Radius (Decimal Inch) | 0.1870" |
| Radius (Inch) | 3/16" |
| Wrap Angle | 300 Degree |
| Number of Flutes | 4 |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Coating | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Wrap Angle:
300 Degree
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Length of Cut (Decimal Inch):
0.3490"
Neck Length (Decimal Inch):
1.0000"
Number of Flutes:
4
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Finish/Coating:
Uncoated
Material:
Carbide
Ships:
From Partner Facility
IsDiscontinued:
