Product Specifications
| Mill Diameter (Inch) | 7/32" |
| Mill Diameter (Decimal Inch) | 0.2187" |
| Number of Flutes | 3 |
| Finish/Coating | Uncoated |
| Length Of Cut (Decimal Inch) | 0.3300" |
| Overall Reach (Inch) | 2-3/16" |
| Overall Reach (Decimal Inch) | 2.1870" |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.0000" |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Center Cutting (Yes/No) | Yes |
| Neck Diameter (Decimal Inch) | 0.2140" |
| LOC Multiple | 1.5x |
| Reach Multiple | 10x |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

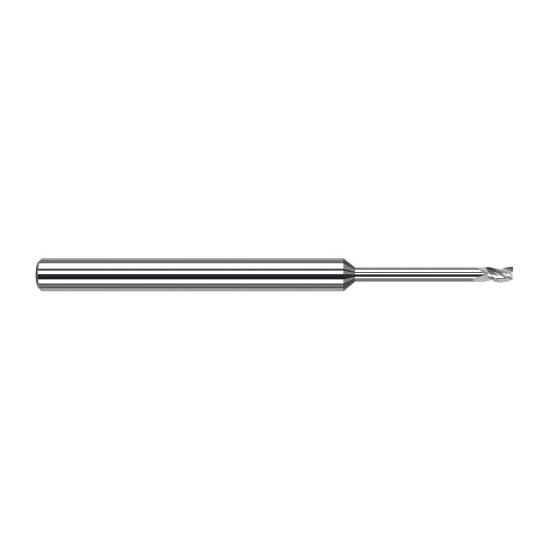

Brand:
Harvey Tool
Mill Diameter (Inch):
7/32"
Mill Diameter (Decimal Inch):
0.2187"
Number of Flutes:
3
Material:
Carbide
Finish/Coating:
Uncoated
Length of Cut (Decimal Inch):
0.3300"
Shank Type:
Reduced
Overall Reach (Inch):
2-3/16"
Overall Reach (Decimal Inch):
2.1870"
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Single or Double End:
Single
Center Cutting:
Yes
Cutting Direction:
Right
Ships:
From Partner Facility
