Product Specifications
| Mill Diameter (Decimal Inch) | 0.2500" |
| Mill Diameter (Inch) | 1/4" |
| Neck Diameter (Decimal Inch) | 0.0780" |
| Neck Diameter (Inch) | 5/64" |
| Cutter Width (Decimal Inch) | 0.0150" |
| Cutter Width (Inch) | 1/64" |
| Neck Length (Decimal Inch) | 0.2500" |
| Neck Length (Inch) | 1/4" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| Radial Depth Of Cut (Decimal Inch) | 0.0760" |
| Number of Flutes | 6 |
| Reach Multiple | 1x |
| Type | II |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Metric | No |
| Coating | AlTiN |
| Center Cutting (Yes/No) | No |
| Chip Breaker (Yes/No) | No |
| Single or Double Angle | Single |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

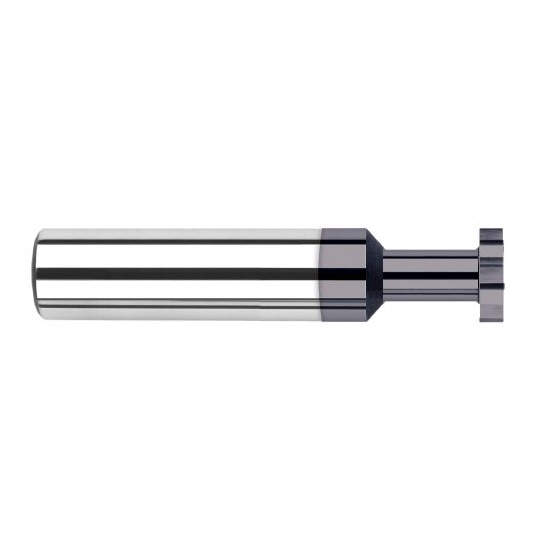

Brand:
Harvey Tool
Cutting Diameter (Inch):
1/4"
Cutting Diameter (Decimal Inch):
0.2500"
Cutting Width (Inch):
1/64"
Cutting Width (Decimal Inch):
0.0150"
Tooth Configuration:
Straight
Neck Length (Inch):
1/4"
Neck Length (Decimal Inch):
0.2500"
Material:
Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Ships:
From Partner Facility
