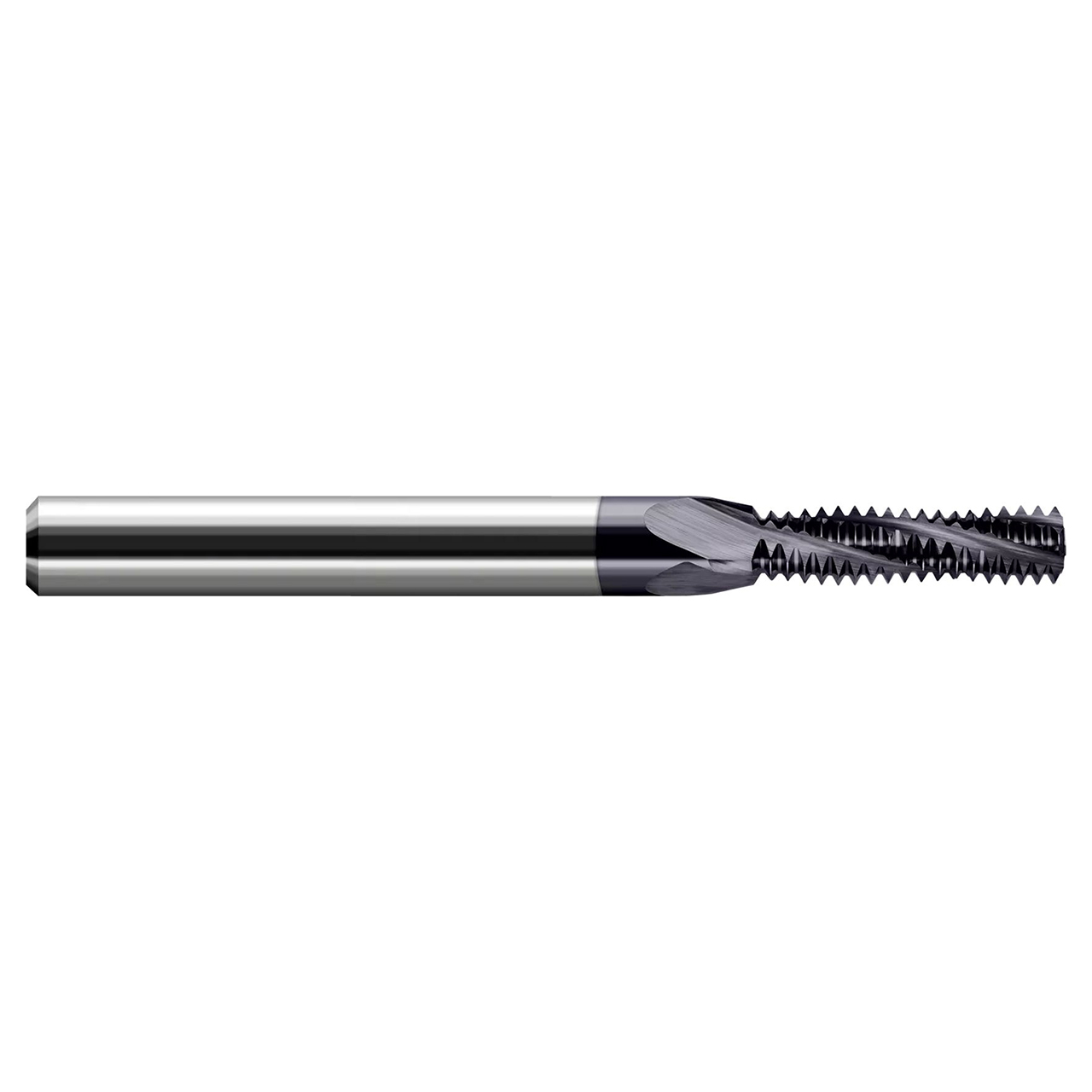

Thread Milling Cutters - Multi-Form - Coolant-Through - Metric are designed to maximize chip ejection in blind holes. These helically fluted tools are able to cut larger threads of the same pitch.
- Designed for maximum chip ejection in blind holes
- Able to cut larger threads of the same pitch
- CNC ground in the USA
- Coolant through
- Solid carbide
- Helical flutes
Product Specifications
| Tool Number | 987103-C3 |
| Cutter Diameter (Inch) | 0.5800" |
| Length of Cut (Inch) | 1.8750" (1-7/8) |
| Overall Length (Inch) | 4.0000" (4) |
| Included Angle | 60 |
| Flutes | 4 |
| Size | 3/4-16 |
| Shank Diameter (Inch) | 0.6250" (5/8) |
| Coating | C3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Decimal Inch):
0.5800"
Length of Cut (Inch):
1-7/8"
Length of Cut (Decimal Inch):
1.8750"
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Included Angle:
60 Degree
Number of Flutes:
4
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Finish/Coating:
C3
