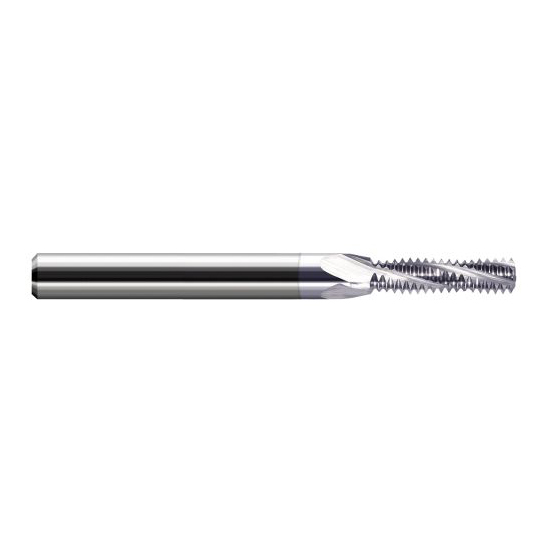

Harvey Tool 987116-C8 | 4-40 Thread 0.0890" Cutting Diameter 3FL TiB2 Coated Carbide Helical Flute Thread Mill

$135.60
Ships:
From Partner Facility
Brand:
Harvey Tool
Thread Size (Inch):
4-40
Cutter Diameter (Decimal Inch):
0.0890"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Number of Flutes:
3
Length of Cut (Decimal Inch):
0.2750"
Finish/Coating:
TiB2
Material:
Carbide
Through Coolant:
No
Ships:
From Partner Facility
SKU:
25119965
UPC:
Weight:
0.01 LBS
Shipping:
Free Shipping
Harvey Tool 987116-C8 | 4-40 Thread 0.0890" Cutting Diameter 3FL TiB2 Coated Carbide Helical Flute Thread Mill
Features
  • Designed for deep threaded applications
  • Larger cutter diameter for maximum strength
  • Due to increased cutting diameter, tools are designed to achieve 60% threads
  • Cuts internal 60 Degree UN threads only
  • Mills right hand and left hand threads
  • Able to cut larger threads of the same pitch
  • Helical flutes
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Size 4-40
Milling Diameter (Decimal Inch) 0.0890"
Shank Diameter (Decimal Inch) 0.1250"
Shank Diameter (Inch) 1/8"
Number of Flutes 3
Length of Cut (Decimal Inch) 0.2750"
Overall Length (Decimal Inch) 2.0000"
Overall Length (Inch) 2"
Finish/Coating TiB2
Material Carbide
Coolant Through (Yes/No) No
Included Angle 60 Degree
Single or Double Single

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Thread Size (Inch):
4-40
Cutter Diameter (Decimal Inch):
0.0890"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Number of Flutes:
3
Length of Cut (Decimal Inch):
0.2750"
Finish/Coating:
TiB2
Material:
Carbide
Through Coolant:
No
Ships:
From Partner Facility
