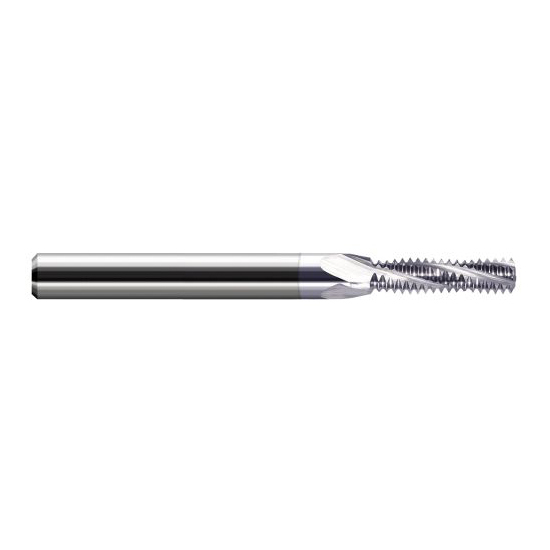

Harvey Tool 987146-C8 | 1/4"-28 Thread x 0.1950" Cutting Diameter 3FL TiB2 Coated Carbide Helical Flute Thread Mill

Harvey Tool 987146-C8 | 1/4"-28 Thread x 0.1950" Cutting Diameter 3FL TiB2 Coated Carbide Helical Flute Thread Mill

SKU: 25119971 Weight: 0.05 LBS Minimum Purchase: 1 unit
UPC:
$253.00
Ships: From Partner Facility
Shipping: Free Shipping

About This Item

Features
  • Designed for deep threaded applications
  • Larger cutter diameter for maximum strength
  • Due to increased cutting diameter, tools are designed to achieve 60% threads
  • Cuts internal 60 Degree UN threads only
  • Mills right hand and left hand threads
  • Able to cut larger threads of the same pitch
  • Helical flutes
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Size 1/4-28
Milling Diameter (Decimal Inch) 0.1950"
Shank Diameter (Decimal Inch) 0.2500"
Shank Diameter (Inch) 1/4"
Number of Flutes 3
Length of Cut (Decimal Inch) 0.7500"
Length of Cut (Inch) 3/4"
Overall Length (Decimal Inch) 2.5000"
Overall Length (Inch) 2-1/2"
Finish/Coating TiB2
Material Carbide
Coolant Through (Yes/No) No
Included Angle 60 Degree
Single or Double Single
