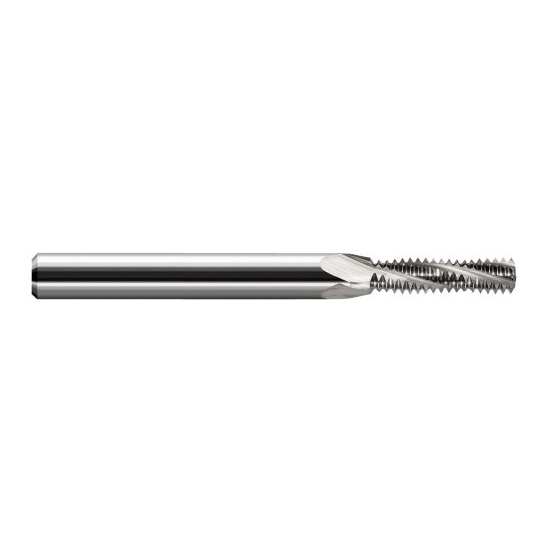

Harvey Tool 987134 | 10-24 Thread 0.1450" Cutting Diameter 3FL Uncoated Carbide Helical Flute Thread Mill

$167.40
Ships:
From Partner Facility
Brand:
Harvey Tool
Thread Size (Inch):
10-24
Cutter Diameter (Decimal Inch):
0.1450"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Number of Flutes:
3
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Finish/Coating:
Uncoated
Material:
Carbide
Through Coolant:
No
Ships:
From Partner Facility
SKU:
25119933
UPC:
Weight:
0.04 LBS
Shipping:
Free Shipping
Features
  • Designed for deep threaded applications
  • Larger cutter diameter for maximum strength
  • Due to increased cutting diameter, tools are designed to achieve 60% threads
  • Cuts internal 60 Degree UN threads only
  • Mills right hand and left hand threads
  • Able to cut larger threads of the same pitch
  • Helical flutes
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Size 10-24
Milling Diameter (Decimal Inch) 0.1450"
Shank Diameter (Decimal Inch) 0.1875"
Shank Diameter (Inch) 3/16"
Number of Flutes 3
Length of Cut (Decimal Inch) 0.5000"
Length of Cut (Inch) 1/2"
Overall Length (Decimal Inch) 2.5000"
Overall Length (Inch) 2-1/2"
Finish/Coating Uncoated
Material Carbide
Coolant Through (Yes/No) No
Included Angle 60 Degree
Single or Double Single
