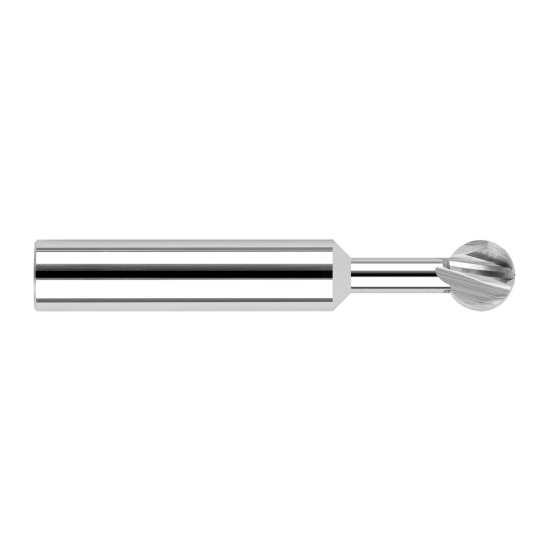

Product Specifications
| Mill Diameter (Decimal Inch) | 0.1875" |
| Mill Diameter (Inch) | 3/16" |
| Neck Diameter (Decimal Inch) | 0.0820" |
| Length Of Cut (Decimal Inch) | 0.1740" |
| Neck Length (Decimal Inch) | 0.1250" |
| Neck Length (Inch) | 1/8" |
| Overall Reach (Decimal Inch) | 0.2990" |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (Inch) | 2" |
| Radius (Decimal Inch) | 0.0938" |
| Wrap Angle | 300 Degree |
| Number of Flutes | 4 |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Coating | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Wrap Angle:
300 Degree
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Length of Cut (Decimal Inch):
0.1740"
Neck Length (Decimal Inch):
0.1250"
Number of Flutes:
4
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Finish/Coating:
Uncoated
Material:
Carbide
Ships:
From Partner Facility
IsDiscontinued:
