Product Specifications
| Mill Diameter (Decimal Inch) | 0.2500" |
| Mill Diameter (Inch) | 1/4" |
| Length Of Cut (Decimal Inch) | 0.7500" |
| Length Of Cut (Inch) | 3/4" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| Angle Per Side | 30 Degree |
| Included Angle | 60 Degree |
| Number of Flutes | 2 |
| LOC Multiple | 3x |
| Web Thickness (Decimal Inch) | 0.0060" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Metric | No |
| Coating | AlTiN |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

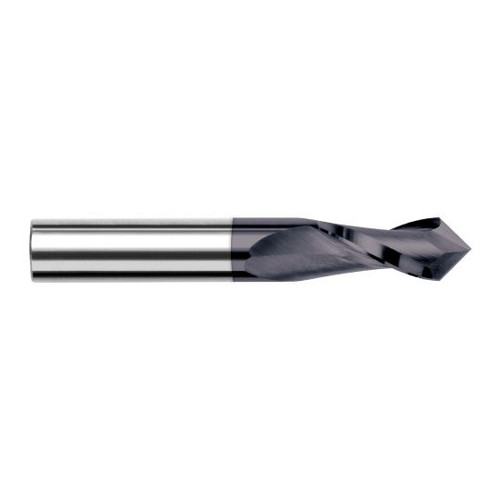

Brand:
Harvey Tool
Material:
Solid Carbide
Point Angle:
60 Degree
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Number of Flutes:
2
Finish/Coating:
AlTiN
Ships:
From Partner Facility
IsDiscontinued:
