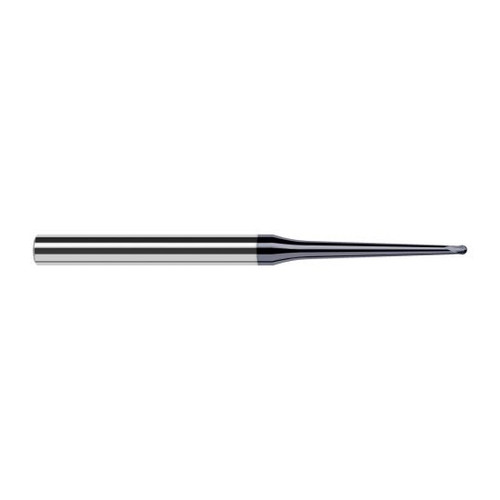

Harvey Tool 994914-C6 | 1/32" Diameter x 1/4" Shank x 0.0250" LOC x 2-1/2" OAL 2FL AlTiN Nano Coated Carbide Ball End Mill

About This Item

Product Specifications

Milling Diameter (Inch)	1/32"
Milling Diameter (Decimal Inch)	0.0310"
Number of Flutes	2
Length Of Cut (Decimal Inch)	0.0250"
Overall Reach (Decimal Inch)	1.0670"
Finish/Coating	AlTiN Nano
Shank Diameter (Inch)	1/4"
Shank Diameter (Decimal Inch)	0.2500"
Single or Double End	Single
Overall Length (Inch)	2-1/2"
Overall Length (Decimal Inch)	2.5000"
Center Cutting (Yes/No)	Yes
Neck Diameter (Decimal Inch)	0.1070"
Tapered Reach (Decimal Inch)	0.7500"
Tapered Reach (Inch)	3/4"
Neck Angle	3 Degrees
LOC Multiple	0.8x
Type	I
Metric (Yes/No)	No
