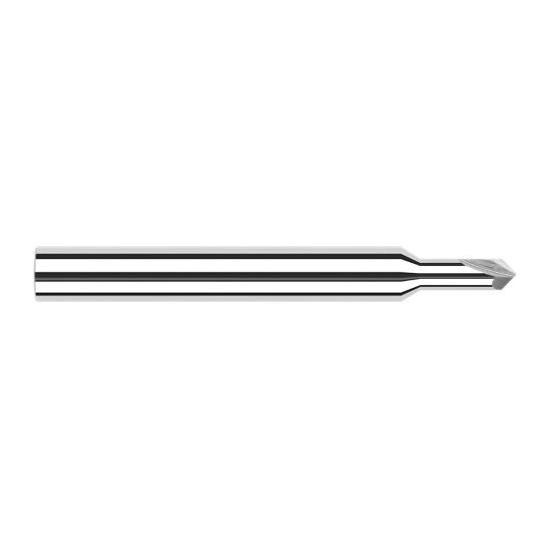

Harvey Tool 998945 | 1/8" Diameter x 1/8" Shank 90 Degree Included Angle 0.1870" Overall Reach 2FL Uncoated Solid Carbide Chamfer Mill

$29.40
Ships:
From Partner Facility
Brand:
Harvey Tool
Included Angle:
90 Degree
Cutter Head Diameter (Inch):
1/8"
Cutter Head Diameter (mm):
0.1250"
Material:
Solid Carbide
Finish/Coating:
Uncoated
Overall Length (Inch):
1-1/2"
Shank Diameter (Inch):
1/8"
Number of Flutes:
2
End Type:
Single
Overall Reach:
0.1870"
Ships:
From Partner Facility
SKU:
25104520
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Product Specifications
Neck Diameter (Decimal Inch) 0.0620"
Neck Diameter (Inch) 1/16"
Length Of Cut (Decimal Inch) 0.0310"
Length Of Cut (Inch) 1/32"
Overall Reach (Decimal Inch) 0.1870"
Overall Reach (Inch) 3/16"
Overall Length (Decimal Inch) 1.5000"
Overall Length (Inch) 1-1/2"
Tip Diameter (Decimal Inch) 0.0060"
Angle Per Side 45 Degree
Included Angle 90 Degree
Number of Flutes 2
Reach Multiple 3x
Type I
Shank Diameter (Decimal Inch) 0.1250"
Shank Diameter (Inch) 1/8"
Metric No
Coating Uncoated
Single or Double Angle Single
