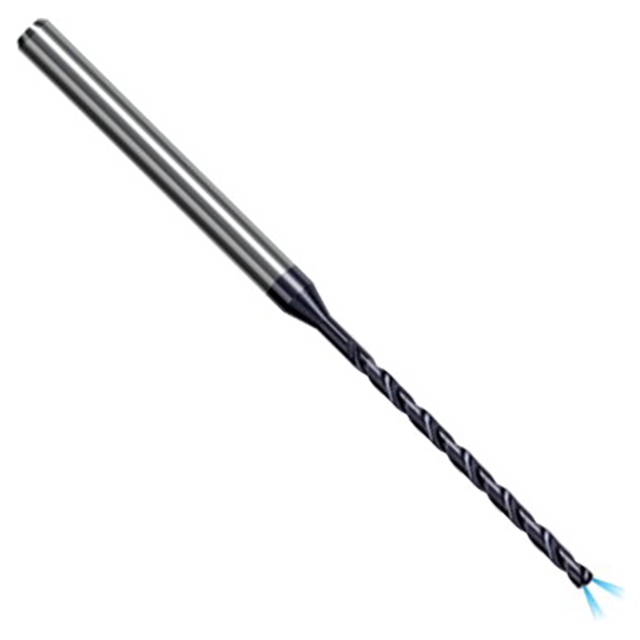

Features
- Optimized for drilling layered composites with excellent performance in virgin plastics and other composite materials
- Double angle geometry for superior performance in preventing push-out and delamination in layered composites
- Amorphous diamond coating for increased abrasion resistance
- h6 shank tolerance for high precision tool holders
- Solid carbide
- CNC ground in the USA
Product Specifications
| Drill Diameter (mm) | 1.511mm |
| Point Angle | 140 Degree |
| Flute Length (mm) | 21.000mm |
| Shank Diameter (mm) | 3.000mm |
| Overall Length (mm) | 63.000mm |
| Finish/Coating | AlTiN |
| Through Coolant | Yes |
| Material | Solid Carbide |
| Number of Flutes | 2 |
| LOC Multiple | (12x) |
| Single or Double | Single |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Size (mm):
1.511mm
Drill Point Angle:
140 Degree
Flute Length (mm):
21.000mm
Shank Diameter (mm):
3.000mm
Shank Type:
Straight
Overall Length (mm):
63.000mm
Finish/Coating:
AlTiN
Through Coolant:
Yes
Material:
Solid Carbide
Ships:
From Partner Facility
