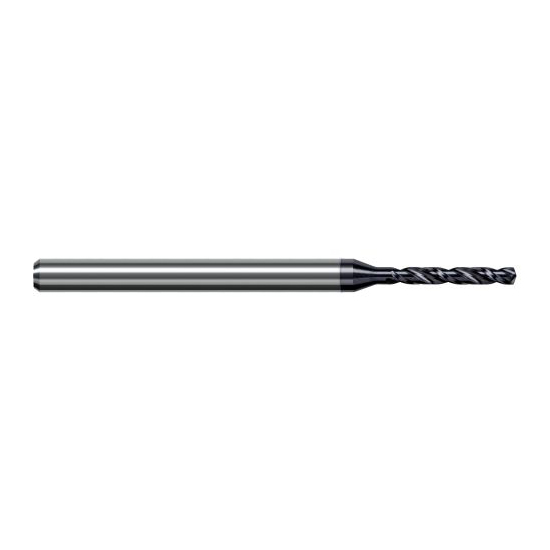

Harvey Tool BGN1968-C6 | 5.000mm Diameter x 6.000mm Shank x 75.000mm OAL 140 Degree Drill Point AlTiN Nano Coated Solid Carbide Micro Drill Bit

Harvey Tool BGN1968-C6 | 5.000mm Diameter x 6.000mm Shank x 75.000mm OAL 140 Degree Drill Point AlTiN Nano Coated Solid Carbide Micro Drill Bit

SKU: 10102975 Weight: 0.05 LBS Minimum Purchase: 1 unit
UPC:
$95.50
Ships: From Partner Facility
Shipping: Calculated at Checkout

About This Item

Features
  • 140 Degree point angle
  • Specialized flute shape for improved chip evacuation and maximum rigidity
  • Double margin design for exceptional hole accuracy and finish
  • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
  • h6 shank tolerance for high precision tool holders
  • Select carbide grade for improved tool life
  • CNC ground in the USA
Product Specifications
Drill Diameter (mm) 5.000mm
Point Angle 140 Degree
Flute Length (mm) 34.000mm
Shank Diameter (mm) 6.000mm
Overall Length (mm) 75.000mm
Finish/Coating AlTiN Nano
Through Coolant No
Material Solid Carbide
Number of Flutes 2
LOC Multiple (5x)
Single or Double Single
End Type Drill Point
