Features

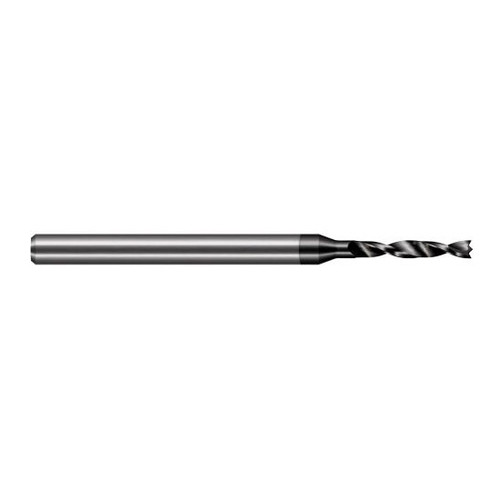

- Optimized for drilling glass or carbon fiber filled and reinforced composites with excellent performance in other filled, layered, and woven composite materials
- Center and OD spur point geometry for accurate scoring action, prevents fraying, uncut fibers, and tear out
- Amorphous diamond coating for increased abrasion resistance
- h6 shank tolerance for high precision tool holders
- Solid carbide
- CNC ground in the USA
Product Specifications
| Drill Diameter (mm) | 2.578mm |
| Point Angle | 90 Degree |
| Flute Length (mm) | 17.000mm |
| Shank Diameter (mm) | 4.000mm |
| Overall Length (mm) | 63.000mm |
| Finish/Coating | Amorphous Diamond |
| Through Coolant | No |
| Material | Solid Carbide |
| Number of Flutes | 2 |
| LOC Multiple | (5x) |
| Single or Double | Single |
| End Type | Brad Point |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Harvey Tool
Size (mm):
2.578mm
Drill Point Angle:
90 Degree
Flute Length (mm):
17.000mm
Shank Diameter (mm):
4.000mm
Shank Type:
Straight
Overall Length (mm):
63.000mm
Finish/Coating:
Amorphous Diamond
Through Coolant:
No
Material:
Solid Carbide
Application:
Composites
Ships:
From Partner Facility
interval quantity:
1
