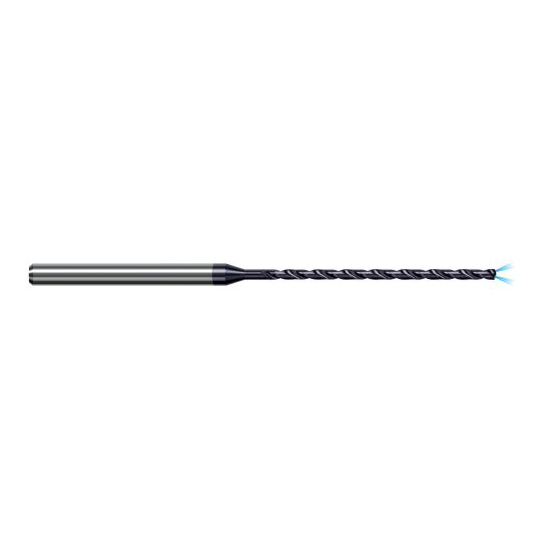

Harvey Tool CXZ0625-C3 | 1.587mm Diameter x 34.500mm Flute Length x 3.000mm Straight Shank x 75.000mm OAL 140 Degree Drill Point Angle AlTiN Coated Solid Carbide Coolant Through Micro Drill Bit

$243.60
Ships:
From Partner Facility
Brand:
Harvey Tool
Size (mm):
1.587mm
Drill Point Angle:
140 Degree
Flute Length (mm):
34.500mm
Shank Diameter (mm):
3.000mm
Shank Type:
Straight
Overall Length (mm):
75.000mm
Finish/Coating:
AlTiN
Through Coolant:
Yes
Material:
Solid Carbide
Ships:
From Partner Facility
SKU:
10102393
UPC:
Weight:
0.01 LBS
Shipping:
Free Shipping
Features
  • Drill up to 20x diameter in depth
  • Coolant through design for improved chip removal and heat reduction at the drill tip
  • 140 Degree point angle
  • Specialized flute shape for improved chip evacuation and maximum rigidity
  • h6 shank tolerance for high precision tool holders
  • AlTiN coated for improved lubricity and heat resistance
  • CNC ground in Germany
  • Solid carbide
Product Specifications
Drill Diameter (mm) 1.587mm
Point Angle 140 Degree
Flute Length (mm) 34.500mm
Shank Diameter (mm) 3.000mm
Overall Length (mm) 75.000mm
Finish/Coating AlTiN
Through Coolant Yes
Material Solid Carbide
Number of Flutes 2
LOC Multiple (20x)
Single or Double Single
