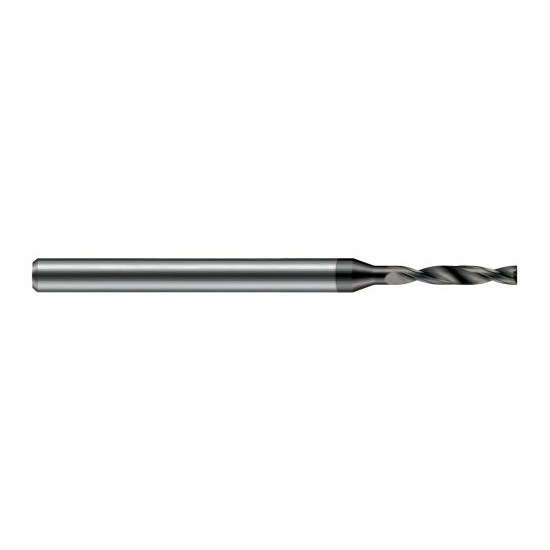

Harvey Tool FBD0781-C3 | 1.984mm Diameter x 3.000mm Shank x 50.000mm OAL 180 Degree Drill Point AlTiN Coated Solid Carbide Micro Drill Bit

$61.10
Ships:
From Partner Facility
Brand:
Harvey Tool
Size (mm):
1.984mm
Drill Point Angle:
180 Degree
Flute Length (mm):
13.500mm
Shank Diameter (mm):
3.000mm
Shank Type:
Straight
Overall Length (mm):
50.000mm
Finish/Coating:
AlTiN
Through Coolant:
No
Material:
Solid Carbide
Ships:
From Partner Facility
SKU:
10102466
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Harvey Tool FBD0781-C3 | 1.984mm Diameter x 3.000mm Shank x 50.000mm OAL 180 Degree Drill Point AlTiN Coated Solid Carbide Micro Drill Bit
Features
  • Flat bottom design (no point angle and no dish) allows for drilling on irregular surfaces and reduces burrs on break through
  • Ideal for drilling on inclined and rounded surfaces, creating flat bottom holes, tilted drilling for angled holes, and drilling intersecting holes, half holes, shoulders, or thin plates
  • h6 tolerance for high precision tool holders
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Drill Diameter (mm) 1.984mm
Point Angle 180 Degree
Flute Length (mm) 13.500mm
Shank Diameter (mm) 3.000mm
Overall Length (mm) 50.000mm
Finish/Coating AlTiN
Through Coolant No
Material Solid Carbide
Number of Flutes 2
LOC Multiple (5x)
Single or Double Single
End Type Flat Bottom

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
