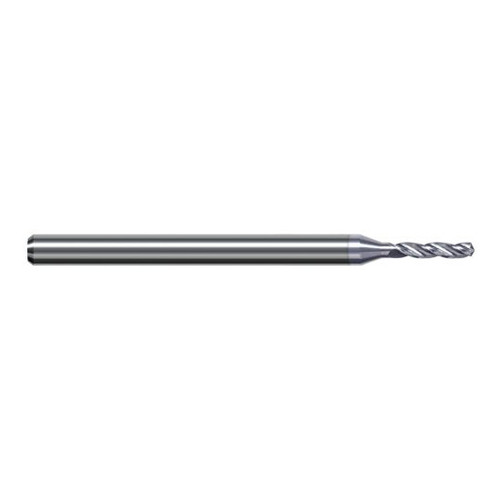

Harvey Tool FBD1250-C8 | 3.175mm Diameter x 6.000mm Shank x 63.000mm OAL 180 Degree Drill Point TiB2 Coated Solid Carbide Micro Drill Bit

Harvey Tool FBD1250-C8 | 3.175mm Diameter x 6.000mm Shank x 63.000mm OAL 180 Degree Drill Point TiB2 Coated Solid Carbide Micro Drill Bit

SKU: 10102519 Weight: 0.04 LBS Minimum Purchase: 1 unit
UPC:
$116.70
Ships: From Partner Facility
Shipping: Calculated at Checkout

About This Item

Features
  • Flat bottom design (no point angle and no dish) allows for drilling on irregular surfaces and reduces burrs on break through
  • Ideal for drilling on inclined and rounded surfaces, creating flat bottom holes, tilted drilling for angled holes, and drilling intersecting holes, half holes, shoulders, or thin plates
  • h6 tolerance for high precision tool holders
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Drill Diameter (mm) 3.175mm
Point Angle 180 Degree
Flute Length (mm) 21.000mm
Shank Diameter (mm) 6.000mm
Overall Length (mm) 63.000mm
Finish/Coating TiB2
Through Coolant No
Material Solid Carbide
Number of Flutes 2
LOC Multiple (5x)
Single or Double Single
End Type Flat Bottom
