Product Specifications
| Reamer Diameter (Decimal Inch) | 0.0200" |
| Neck Diameter (Decimal Inch) | 0.0192" |
| Overall Reach (Inch) | 1/4" |
| Overall Reach (Decimal Inch) | 0.2500" |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.5000" |
| Chamfer Length (Decimal Inch) | 0.0023" |
| Angle per Side | 45 Degree |
| Included Angle | 90 Degree |
| Number of Flutes | 4 |
| LOC Multiple | 7x |
| Reach Multiple | 12x |
| Margin Length (Inch) | 9/64" |
| Margin Length | 0.1400" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Metric (Yes/No) | No |
| Center Cutting (Yes/No) | No |
| Chip Breaker (Yes/No) | No |
| Finish/Coating | Uncoated |
| Double Ended (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

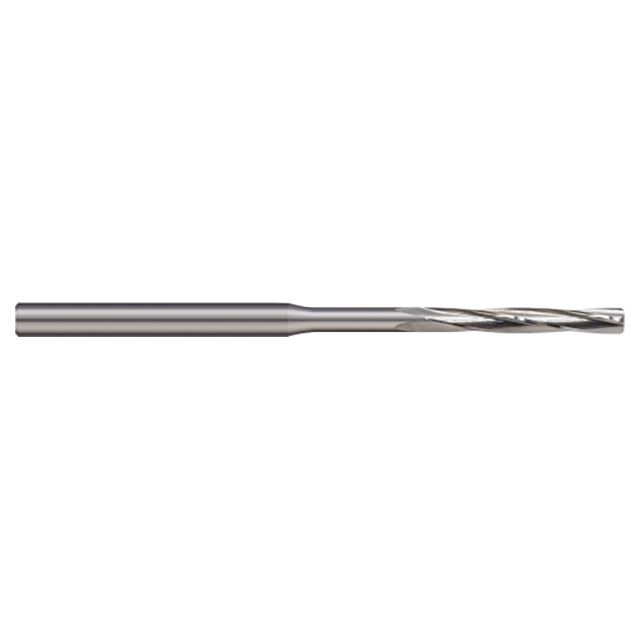

Brand:
Harvey Tool
Size (Decimal Inch):
0.0200"
Material:
Carbide
Overall Reach (Inch):
1/4"
Overall Reach (Decimal Inch):
0.2500"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Flute Style:
Spiral
Number of Flutes:
4
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Ships:
From Partner Facility
IsDiscontinued:
