Product Specifications

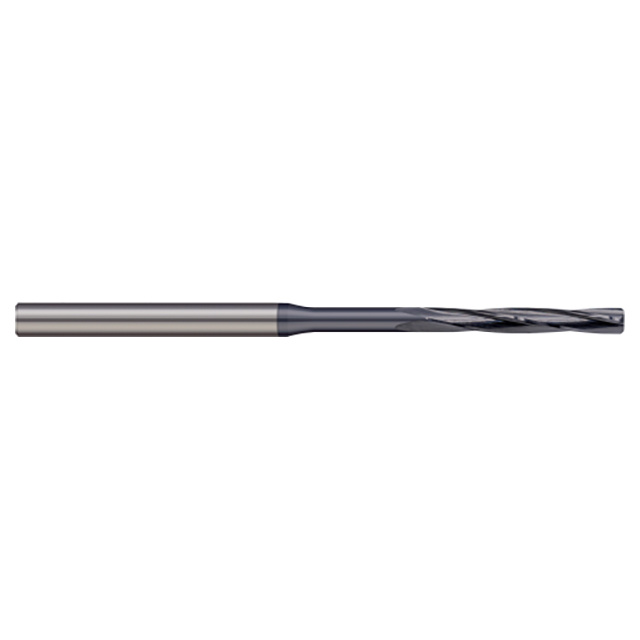

| Manufacturer Part Number | RRH0300-C3 |
| Reamer Diameter (Decimal Inch) | 0.030" |
| Neck Diameter (Decimal Inch) | 0.029" |
| Overall Reach (Inch) | 3/8" |
| Overall Reach (Decimal Inch) | 0.375" |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.000" |
| Chamfer Length (Decimal Inch) | 0.004" |
| Angle per Side (Degree) | 45 Degree |
| Included Angle (Degree) | 90 Degree |
| Number of Flutes | 4 |
| Length of Cut Multiple | (7x) |
| Reach Multiple | (12x) |
| Margin Length (Inch) | 7/32" |
| Margin Length (Decimal Inch) | 0.218" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Coating | AlTiN |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Product Type | Spiral Flute Chucking Reamer |
