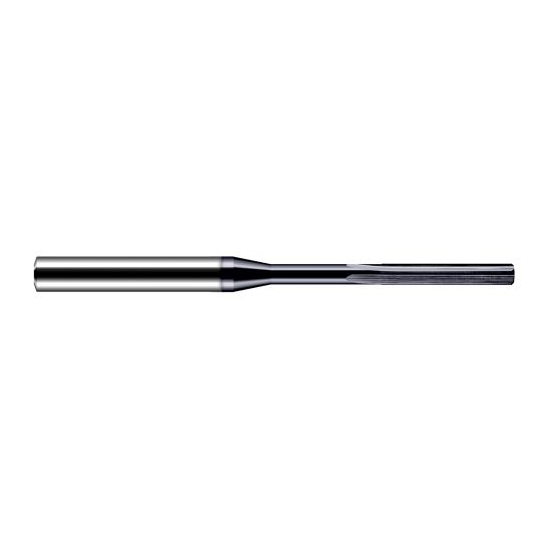

Harvey Tool RSB0795-C3 | 0.0795" 4FL Straight Flute Reduced Shank AlTiN Coating Solid Carbide Chucking Reamer

$40.20
Ships:
From Partner Facility
Brand:
Harvey Tool
Size (Decimal Inch):
0.0795"
Material:
Solid Carbide
Overall Reach (Inch):
1"
Overall Reach (Decimal Inch):
1.0000"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Flute Style:
Straight
Number of Flutes:
4
Shank Type:
Reduced
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Ships:
From Partner Facility
IsDiscontinued:
SKU:
10103647
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Features
  • Tolerance for Uncoated is +.0000"/-.0002". Tolerance for AlTiN coating is +.0002"/-.0000"
  • AlTiN coated for improved lubricity and heat resistance
  • Straight flutes for through and blind hole applications
  • Oversized, common shanks to maintain strength, stiffness, and accuracy
  • 45 Degree chamfer angle
  • h6 shank tolerance for high precision tool holders
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Reamer Diameter (Decimal Inch) 0.0795"
Material Solid Carbide
Overall Reach (Inch) 1"
Overall Reach (Decimal Inch) 1.0000"
Overall Length (Inch) 2"
Overall Length (Decimal Inch) 2.0000"
Number of Flutes 4
Shank Diameter (Inch) 1/8"
Shank Diameter (Decimal Inch) 0.1250"
Chamfer Length (Decimal Inch) 0.0072"
LOC Multiple (7x)
Reach Multiple (13x)
Margin Length (Inch) 9/16"
Margin Length (Decimal Inch) 0.5620"
Finish/Coating AlTiN
Angle Per Side 45 Degrees
Included Angle 90 Degrees
Neck Diameter (Decimal Inch) 0.0775"
