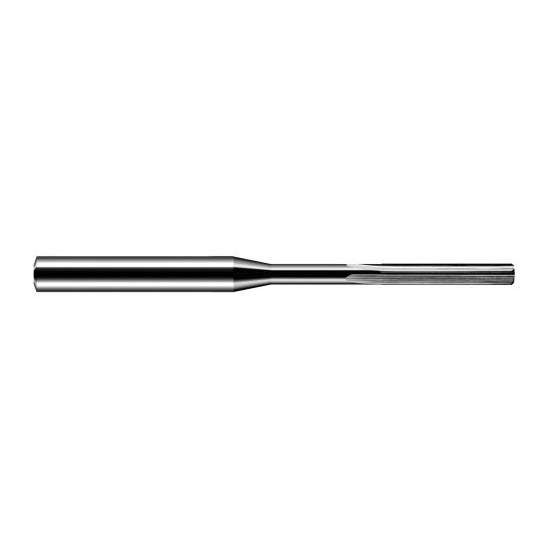

Harvey Tool RSB0937 | 0.094" Diameter x 0.125" Shank x 0.687" Margin Length x 2.500" OAL x 90 Degree Included Angle 4 Flute Uncoated Carbide Chucking Reamer

$48.70
Ships:
From Partner Facility
Brand:
Harvey Tool
Reamer Diameter (Inch):
3/32"
Reamer Diameter (Decimal Inch):
0.0937"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Number of Flutes:
4
Finish/Coating:
Uncoated
interval quantity:
1
Ships:
From Partner Facility
SKU:
10104023
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Harvey Tool RSB0937 | 0.094" Diameter x 0.125" Shank x 0.687" Margin Length x 2.500" OAL x 90 Degree Included Angle 4 Flute Uncoated Carbide Chucking Reamer

Product Specifications
Manufacturer Part NumberRSB0937
Reamer Diameter (Inch)3/32"
Reamer Diameter (Decimal Inch)0.094"
Neck Diameter (Decimal Inch)0.092"
Overall Reach (Inch)1-1/4"
Overall Reach (Decimal Inch)1.250"
Overall Length (Inch)2-1/2"
Overall Length (Decimal Inch)2.500"
Chamfer Length (Decimal Inch)0.008"
Angle per Side (Degree)45 Degree
Included Angle (Degree)90 Degree
Number of Flutes4
Length of Cut Multiple(7x)
Reach Multiple(13x)
Margin Length (Inch)11/16"
Margin Length (Decimal Inch)0.687"
Shank Diameter (Inch)1/8"
Shank Diameter (Decimal Inch)0.125"
CoatingUncoated
MaterialCarbide
Product TypeChucking Reamer
