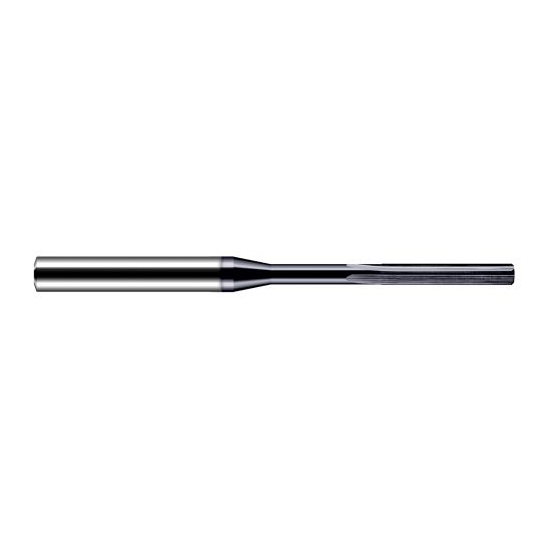

Features
- Tolerance for Uncoated is +.0000"/-.0002". Tolerance for AlTiN coating is +.0002"/-.0000"
- AlTiN coated for improved lubricity and heat resistance
- Straight flutes for through and blind hole applications
- Oversized, common shanks to maintain strength, stiffness, and accuracy
- 45 Degree chamfer angle
- h6 shank tolerance for high precision tool holders
- Solid carbide
- CNC ground in the USA
Product Specifications
| Reamer Diameter (Decimal Inch) | 0.1580" |
| Material | Solid Carbide |
| Overall Reach (Inch) | 1-7/8" |
| Overall Reach (Decimal Inch) | 1.8750" |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Number of Flutes | 4 |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Chamfer Length (Decimal Inch) | 0.0142" |
| LOC Multiple | (6x) |
| Reach Multiple | (12x) |
| Margin Length (Inch) | 7/8" |
| Margin Length (Decimal Inch) | 0.8750" |
| Finish/Coating | AlTiN |
| Angle Per Side | 45 Degrees |
| Included Angle | 90 Degrees |
| Neck Diameter (Decimal Inch) | 0.1540" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Size (Decimal Inch):
0.1580"
Material:
Solid Carbide
Overall Reach (Inch):
1-7/8"
Overall Reach (Decimal Inch):
1.8750"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Flute Style:
Straight
Number of Flutes:
4
Shank Type:
Reduced
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Ships:
From Partner Facility
