Product Specifications
| Manufacturer Part Number | 11204COP |
| Broach Size (mm) | 4mm-B1 / II |
| Tolerances (Inch) | 0.1569 -0.1579" |
| Broach Dimensions (Inch) | 1/4" x 10-3/4" |
| Minimum Length of Cut (Inch) | 3/8" |
| Maximum Length of Cut (Inch) | 1-5/8" |
| Tooth Pitch (Inch) | 1/4" |
| Pressure Required (lbs) | 1550 lbs. |

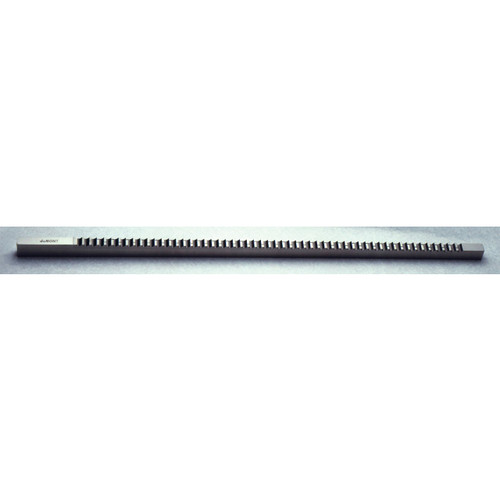

| Product Type | Keyway Broach |
