Product Specifications
| Manufacturer Part Number | 12105 |
| Tolerances (Inch) | 0.1968 -0.1973" |
| Minimum Length of Cut (Inch) | 1/4" |
| Maximum Length of Cut (Inch) | 3/4" |
| Tooth Pitch (Inch) | 5/32" |
| Broach Length (Inch) | 5-3/8" |
| Pilot Diameter (Inch) | 0.1968" |
| Drill Size (mm) | 5.00mm |
| Hex Size (mm) | 5mm |
| Pressure Required (lbs) | 775 lbs. |

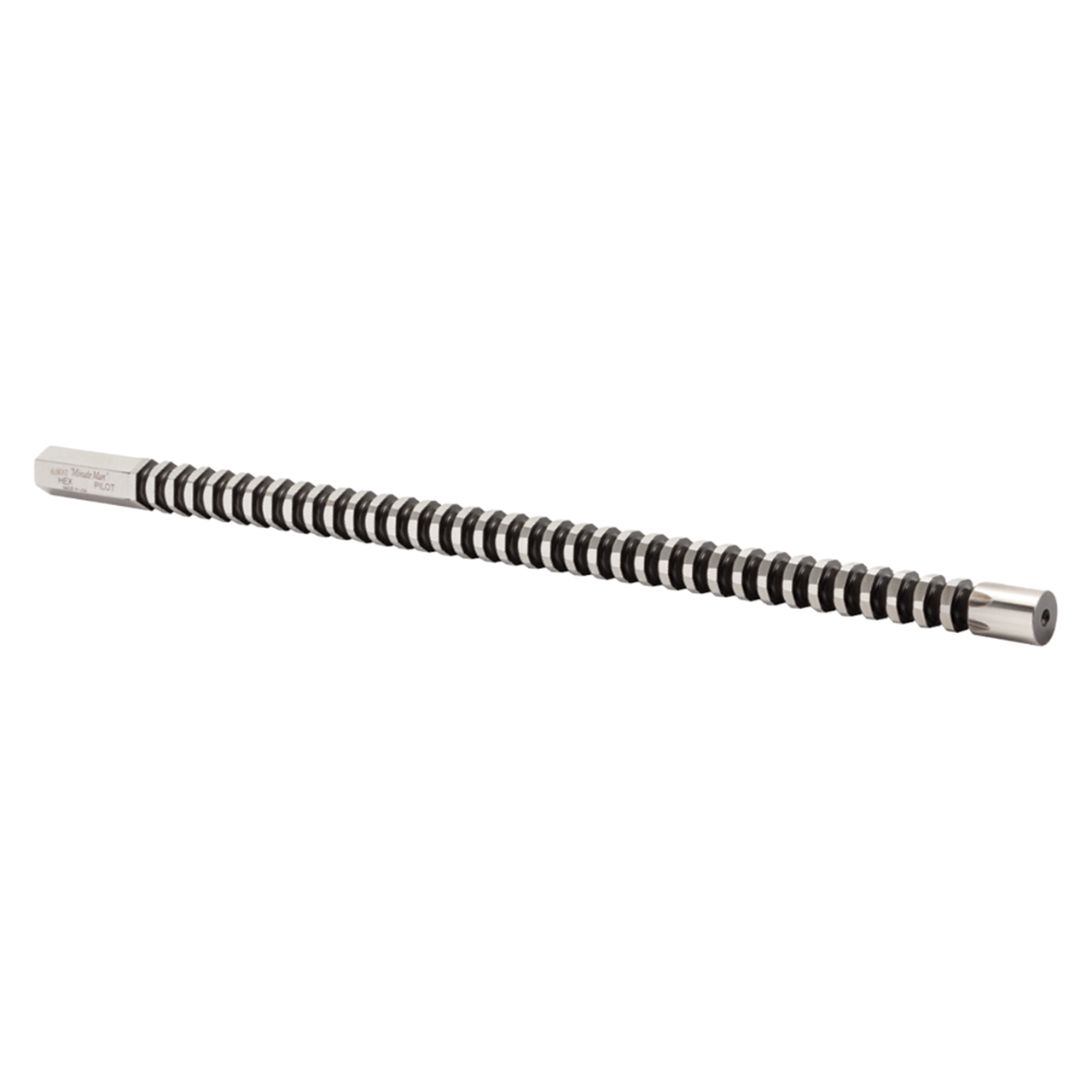

| Product Type | Hexagon Broach |
