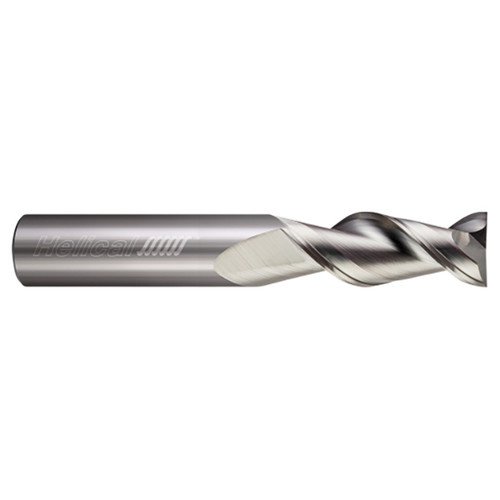

Helical Solutions 00255 | H45AL-R-20312 5/16" Diameter x 5/16" Shank x 13/16" LOC x 2-1/2" OAL 2 Flute Single End Uncoated Solid Carbide Square End Mill For Aluminum

$29.80
Ships:
From Partner Facility
Brand:
Helical Solutions
Mill Diameter (Inch):
5/16"
Mill Diameter (Decimal Inch):
0.3125"
Number of Flutes:
2
Length of Cut (Inch):
13/16"
Length of Cut (Decimal Inch):
0.8125"
Material:
Solid Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Application:
Aluminum
Single or Double End:
Single
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Ships:
From Partner Facility
SKU:
25102030
UPC:
Weight:
0.10 LBS
Shipping:
Calculated at Checkout
Product Specifications
Tool Description H45AL-R-20312
Mill Diameter (Inch) 5/16"
Mill Diameter (Decimal Inch) 0.3125"
Number of Flutes 2
Length of Cut (Inch) 13/16"
Length of Cut (Decimal Inch) 0.8125"
Material Solid Carbide
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.5000"
Shank Diameter (Inch) 5/16"
Shank Diameter (Decimal Inch) 0.3125"
Finish/Coating Uncoated
Center Cutting (Yes/No) Yes
Application Aluminum
LOC Multiple 2.5x
Web Thickness (Decimal Inch) 0.0060"
Shank Length (Inch) 1-11/16"
Shank Length (Decimal Inch) 1.6875"
Chip Breaker (Yes/No) No
Metric (Yes/No) No
